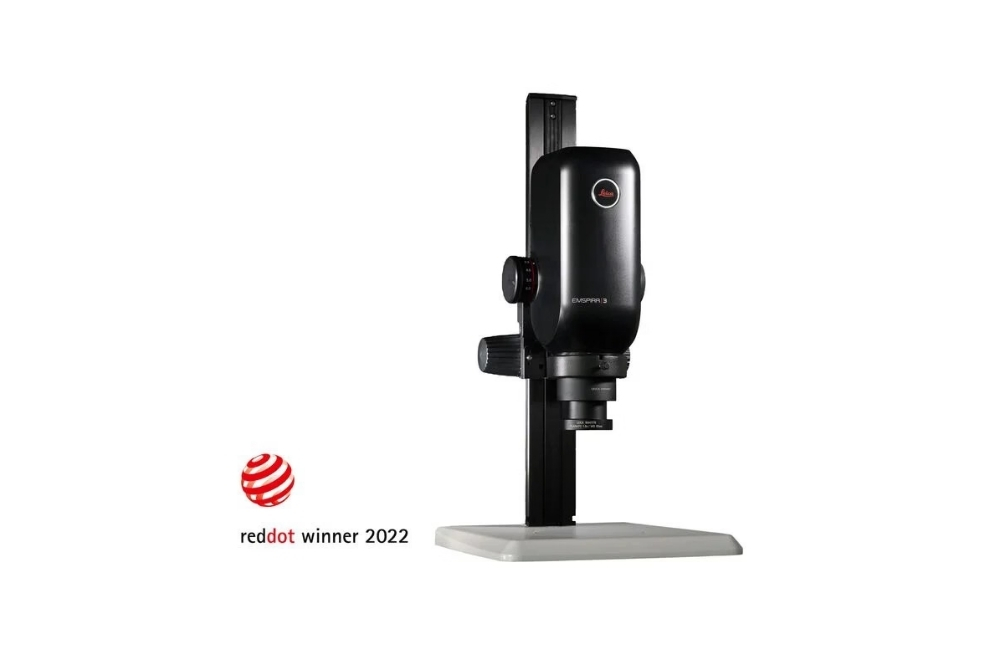

Leica - Emspira 3 Digital Microscope

Back to product overview

Contact us
Downloads

LAOS

Julien Moret, General Manager, Laos, Myanmar & Cambodia

Phone +856 21 221 023

Fax +856 21 453 555

Contact Email

DKSH Laos Company Ltd.
3rd Floor, Vientiane Center Office Building Khouvieng Road, Sisattanak District
Vientiane Capital
Laos

CAMBODIA

Len Sena, Business Development Manager

Phone +855 87 887 883

Contact Email

DKSH (Cambodia) Ltd
Corner Preah Monivong Boulevard and Street 484
Phnom Penh
Cambodia

MALAYSIA

Jasmine Keller, Assistant General Manager, Scientific Instrumentation

Phone +60 3-7882 6285

Contact Email

DKSH Technology Sdn. Bhd.
B-11-01, The Ascent, Paradigm, No. 1, Jalan SS7/26A, Kelana Jaya
47301 Petaling Jaya, Selangor
Malaysia

PHILIPPINES

Camilo Umlas, General Manager

Phone +63 2 8548 3200

Contact Email

DKSH Philippines Inc.
8th Floor Cyber Sigma, Lawton Ave., McKinley West, Fort Bonifacio
1634 Taguig City
Philippines

VIETNAM

Nguyen Thi Xuan Mai, Senior Manager, National Sales

Phone +84 28 3812 5806 ext 89604

Fax +84 8 3812 5807

Contact Email

DKSH Technology
5th Floor, Viettel Complex, 285 Cach Mang Thang Tam Ward 12, District 10/6th Floor, Peakview Tower, 36 Hoang Cau O Cho Dua Ward
70000 Ho Chi Minh City / Dong Da District, Ha Noi
Vietnam

Leica - Emspira 3 Digital Microscope Brochure - Protected
(PDF, 1 MB)

The advantage of optimized inspection and adaptability to your needs combined in a single system is waiting for you. Save time when meeting demanding throughput targets and inspecting diverse samples with Emspira 3.

For efficient decision making, benefit from secure storage and easy sharing of documentation – no matter if you inspect in stand-alone mode or with a PC. The robust design of Emspira 3 allows you to focus confidently and reliably on your inspection work both in production and laboratory environments.

Technical Specifications

General optical data
Max. resolution	337 lp/mm
Max. FoVx	76,1 mm
Max. FoVy	42,8 mm
Max. DoF	40,5 mm
Working distance	303 – 19 mm
Optical data for PlanApo 1.0x
Max. measurement 1.0x accuracy @ 0,75x zoom	+/- 1%
Max. measurement accuracy @ 6.0x zoom	+/- 0.5%
Objective optics carrier
Coding	Click-stop feature
Click-stop feature	Eight switchable positions, for repetitive tasks
Microscope camera specifications
Live image on an HDMI monitor	at up to 60 fps (3,840 × 2,160 pixels)
Full-screen image capture	at 12 MP
File formats	JPG, TIF, BMP
Housing
Antimicrobial surface	AgTreatTM according to ISO 22196
Protection rating	IP 21
Magnification range
Monitor 10" with Achr. objective 0.32x	total magnification 23:1
Monitor 28" with Achr. objective 0.32x	total magnification 65:1
Monitor 10" with PlanApo objective 5.0x	total magnification 360:1
Monitor 28" with PlanApo objective 5.0x	total magnification 1027:1
Software & connectivity
Compatibility	USB 3.0, standard USB type C, lockable
High-definition connector	HDMI 2.0a, HDMI plug type A
USB connectors	4x USB 2 connectors, type A
Controls	USB mouse Optional: keyboard, touch screen, footswitch
Supported software	LAS X 5.0.2 and higher

Key Features

Measure directly during visual inspection without a PC

In stand-alone mode, measure multiple regions on the sample in the live image

Directly compare to references with a single click

For easier decisions, compare the live image to reference images or customized overlays to check if parts are within tolerances.

Annotate images without a PC

Add annotations directly to the image using the integrated on-screen display
Easily highlight features and areas of interest on the sample by adding comments and conclusions, as text and graphical elements, to the image

Automatically save images on your network

Save images and results from inspection directly to your local network via ethernet connectivity for fast storage
Simultaneously take and share images with a single press of a button using the optional hand/foot switch

Share results via email with one click

Easily share documentation directly with email contacts without a PC

Use the illumination that works for your sample

Reveal relevant details with the appropriate illumination

How It Works

Leica - Emspira 3 Digital Microscope

Digital microscope
Quick sample identification
PCB Inspection
On-screen display

Emspira 3 Digital Microscope

The Emspira 3 digital microscope empowers you to streamline your inspection process, cover your needs flexibly, and work with confidence. It combines everything needed to perform comprehensive visual inspection with a single system, including comparison, measurement, and data sharing.

Emspira 3 - Inspect With a Lean Setup

Emspira 3 combines everything needed to perform comprehensive visual inspection into a single system, including comparison, measurement, and documentation sharing. Inspect with a single system – no need for a PC. Streamline your inspection process with a lean.
