IKA - Overhead Stirrers

Available models

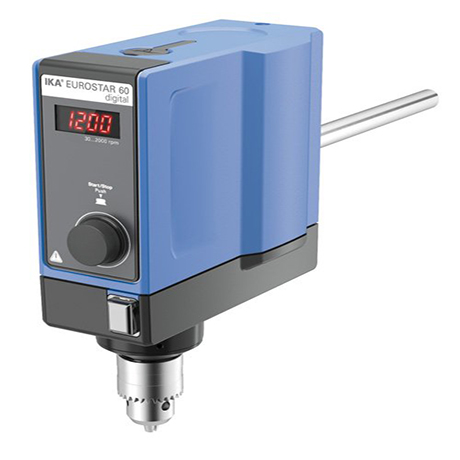

Overhead Stirrers EUROSTAR 60 digital

Technical specifications
Stirring quantity max. per stirring position (H2O)	40 l
Motor rating input	176 W
Motor rating output	126 W
Motor principle	Brushless DC
Speed display	7 segment LED
Speed range	0/30 - 2000 rpm
Viscosity max.	50000 mPas
Dimensions (W x H x D)	86 x 248 x 208 mm
Weight	4.4 kg
Torque max. at stirring shaft	60 Ncm

Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

Universally used strong laboratory stirrer for quantities up to 40 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

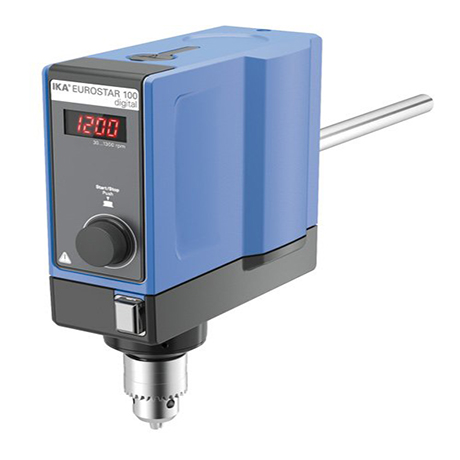

Overhead Stirrers EUROSTAR 100 digital

Technical specifications
Stirring quantity max. per stirring position (H2O)	100 l
Motor rating input	186 W
Motor rating output	136 W
Motor principle	Brushless DC
Speed display	7 segment LED
Speed range	0/30 - 1300 rpm
Viscosity max.	70000 mPas
Output max. at stirring shaft	136 W
Torque max. at stirring shaft	100 Ncm
Dimensions (W x H x D)	86 x 248 x 208 mm
Weight	4.4 kg

Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

Powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 – 1300 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

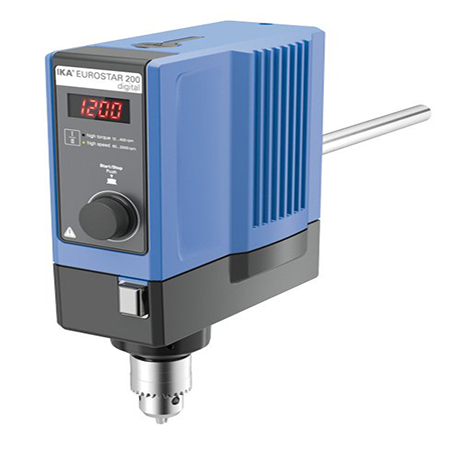

Overhead Stirrers EUROSTAR 200 digital

Technical specifications
Stirring quantity max. per stirring position (H2O)	100 l
Motor rating input	130 W
Motor rating output	84 W
Motor principle	Brushless DC
Speed display	7 segment LED
Speed range	0/6 - 2000 rpm
Viscosity max.	100000 mPas
Dimensions (W x H x D)	91 x 274 x 209 mm
Weight	4.6 kg
Torque max. at stirring shaft	200 Ncm

Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

Extremely powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 – 2000 rpm (two speed ranges). Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
