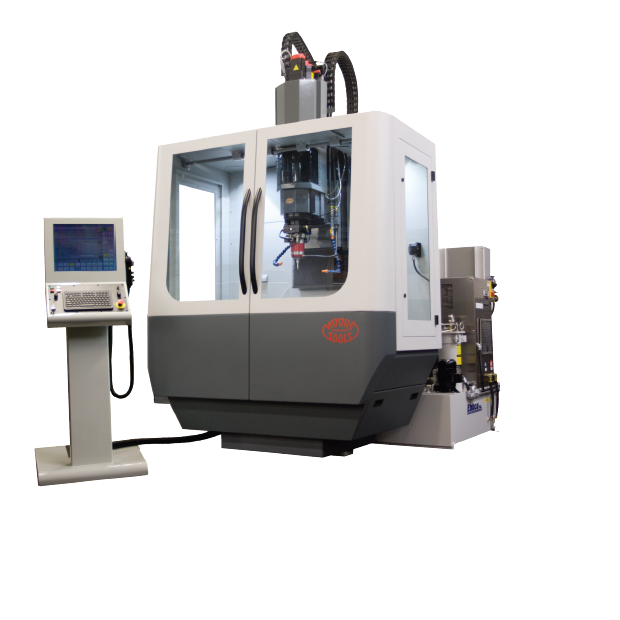

500 Series Jig Grinder

The Moore Tool Company, a leader in precision machine tool design andmanufacture, produces a complete line of jig grinding machines and accessories.

Moore ProGrind® Options

  • Automatic tool changer (up to 20 tools)
  • Automatic tool changer electric spindle: 3,000 to 60,000 rpm
  • Air spindles: 9,000 to 175,000 rpm (five spindles)
  • Electric spindles: 15,000 to 80,000 rpm (three spindles)
  • Flood coolant system with chiller
  • Machine enclosure
  • Single-axis or two-axis rotary tables
  • Fire suppression system
  • Vapor extraction system
  • On-machine inspection/probing

Product description

The 500 Series Jig Grinder is available in three models (CPZ, CPZ-E and CPWZ)to address your specific precision grinding requirements. These CNC-controlled jig grinding machines have multiple, programmable axes (four simultaneously controlled) for complex two- and three-dimensional features.

Technical specifications

Capacity
Table working surface 305 mm x 610 mm (12.0 x 24.0 in.)
Travel (X Axis) 500 mm (19.6 in.)
Travel (Y Axis) 300 mm (11.8 in.)
U-axis travel (programmable) 3,6 mm (0.140 in.)
U-axis travel (main coarse adjustment) 11 mm (0.43 inch) behind centerline of main spindle to 28,5 mm (1.125 inch) beyond center
Table top to U-axis mounting flange 280 mm to 762 mm (11.0 in. to 30.0 in.)
Table top to bottom of ATC electric grinding spindle 109,3 mm to 591,3 mm (4.28 in. to 23.28 in.)
W-axis spindle housing vertical travel 350 mm (13.8 in.)
Z-axis vertical slide travel 140 mm (5.5 in.)
Taper adjustment range 0 to 1.5º from centerline (3º included angle over full vertical travel.)
Grinding hole diameter range 0,4 to 127 mm (0.016 to 5.0 in.);or to 343 mm (13.5 in.) with optional extension plates
Load carrying capacity 300 kg (660 lbs)
Speeds and Feeds
Traverse speed: X, Y, W, Z axis 0,0001 – 2000 mm/min. (0.00001 – 80 in./min.)
Spindle speeds (planetary mode) 1 to 300 rpm
Air turbine and electric grinding spindle speeds 6,000 to 175,000 rpm
Reciprocation stroke rate (25,4 mm / 1 in.) 0 – 190 cycles/min.

Key features

• Base assembly provides unmatched geometric accuracy and repeatability
• Fanuc multi-axis control and PC front-end with customized touchscreen
user interface
• Moore ProGrind® for improved tool and labor cost savings

Contact Us

Beijing
26th Floor, West Tower, Hanwei Plaza
No.7 Guanghua Road, Chaoyang District, Beijing
TEL: 010-6561 3988
FAX: 010-6561 0278
http://dksh-machinery.com		 Shanghai
Room Unit 605-607, Build 2, Xinglian Building,
No.1535 Hongmei Road, Xuhui District, Shanghai
TEL: 021-5383 8811
FAX: 021-3367 8466
http://dksh-machinery.com		 Chengdu
Room 802, 8/F, Tower 1, Central Plaza
No.8 Shuncheng Street, Chengdu
TEL: 028-8676 1111
FAX: 028-8676 1122
http://dksh-machinery.com
Guangzhou
Room 1213-1215, 12/F Jie Tai Plaza,
218-222 Zhongshan Road ,Guangzhou
TEL: 020-8132 0662
FAX: 020-8132 0663
http://dksh-machinery.com		 Xi'an
B-4-H, K.I.Tower,
No.1 Xihuamen, Xi'an
TEL: 029-8833 7412
FAX: 029-8833 7415
http://dksh-machinery.com		 Hongkong
23/F, Tower A, Southmark,
11 Yip Hing Street, Wong Chuk Hang, Hong Kong
TEL: 00852-2880 9808
FAX: 00852-2369 1042
http://dksh-machinery.com

  • Aerospace
  • Automotive
  • Die & Mould
  • Electronics
  • Machinery & Manufacturing
  • Medical
  • Mining & Minerals
  • Oil & Gas
Moore Tool

The Moore Tool Company manufactures a complete line of jig grinders and has a precision manufacturing business certified to ISO 9001:2008 and AS9100C. The company is ITAR registered.

Moore’s machine tool business builds fully automated and highly productive CNC Continuous Path jig grinders. We offer a complete line of machine accessories, including our ProGrind system which includes electric grinding spindles, flood coolant enclosures, as well as advanced sensor-based systems such as Moore Autogrind and the patented Moore Autosize®. Moore’s precision manufacturing business specializes in aerospace and defense related machining including 5-axis milling and precision jig grinding. Moore also designs and manufactures tooling for the food packaging, metal stamping and plastics forming industries.
