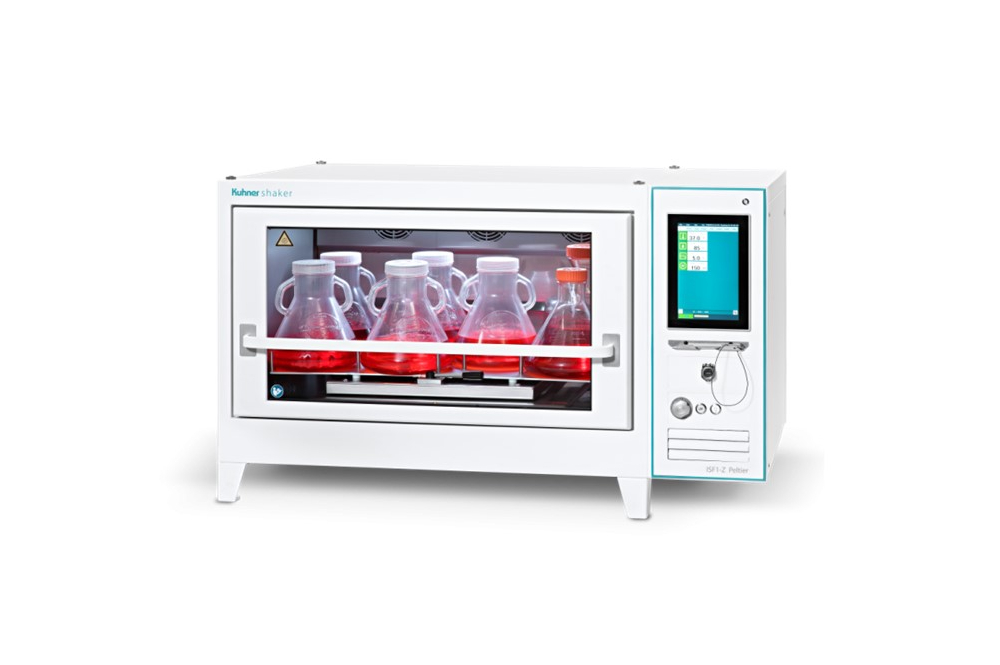

The ISF1-Z incubator shaker is suitable for applications in laboratories, research centers and production facilities.

The ISF1-Z complies with GMP (good manufacturing practice) requirements and regulations. It offers a large shaking capacity with a small footprint and many features allowing straightforward, safe handling of any culture or product.

The incubator shaker is applicable for microbial, plant, human and animal cell cultures.

Technical Specifications

ISF1-Z Basic ISF1-Z EcoDew® ISF1-Z Peltier ISF1-Z Compressor
Part number 104683 105694 105696 106116
For CO2 control 104682 105693 105695 106117
Humidity control Not available Included 106764 106765
Cooling no no yes yes
Temperature minimum ambient +10°C ambient +10°C ambient -5°C ambient above 25°C, -22°C
Temperature maximum 80°C (60°C with CO2) 80°C (60°C with CO2) 60°C (50°C without humidity) 80 °C (60 °C with CO2)
Humidity maximum - 85 % r.h. 85 % r.h. 85 % r.h(up to 40 °C)
CO2 0-20% 0-20% 0-20% 0-20%
Power consumption 1,000 W 1,000 W 1,000 W 1,000 W
Gas volume 378 L 378 L 366 L 372 L
Shaking diameter (user-adjustable, all incl.) 3/6/9/12.5/19/25/50/70
(0 - 70 mm, stepless)
3/6/9/12.5/19/25/50/70
(0 - 70 mm, stepless)
3/6/9/12.5/19/25/50/70
(0 - 70 mm, stepless)
3/6/9/12.5/19/25/50/70
(0 - 70 mm, stepless)
Shaking motion orbital orbital orbital orbital
Shaking frequency range at 12.5 mm (rpm) 0/20 - 500 (700 HS**, on request) 0/20 - 500 (700 HS**, on request) 0/20 - 500 (700 HS**) 0/20 - 500 (700 HS**)
Shaking frequency range at 25 mm (rpm) 0/20 - 400 (550 HS**, on request) 0/20 - 400 (550 HS**, on request) 0/20 - 400 (550 HS**) 0/20 - 400 (550 HS**)
Shaking frequency range at 50 mm (rpm) 0/20 - 300 (400 HS**) 0/20 - 300 (400 HS**) 0/20 - 300 (400 HS**) 0/20 - 300 (400 HS**)
Shaking frequency range at 70 mm (rpm) 0/20 - 250 (300 HS**) 0/20 - 250 (300 HS**) 0/20 - 250 (300 HS**) 0/20 - 250 (300 HS**)

* depends on shaking speed and diameter (specification sheet available)

** High Speed

Note

  • Specific technical data for 3mm/1000rpm under options
  • Technical data subject to change

Available models

The appropriate properties for every application

The ISF1-Z incubator shaker is available in four different models: ISF1-Z, ISF1-Z EcoDew, ISF1-Z Peltier and ISF1-Z Compressor. Each model provides distinct features and is additionally available with CO2 control for cell culture processes.

The ISF1-Z is the basic version of Kuhners stackable incubator shaker with temperature control (heating).

The ISF1-Z EcoDew® includes temperature control (heating) and Kuhners EcoDew® technology for humidity control. No cooling compressor unit is required for the precise and eco-friendly EcoDew® technology.

The ISF1-Z Compressor  has a specially large temperature range and can quickly cool and heat up. It was designed with the environment in mind. The incubator shaker contains two cooling units operated with natural gas. This eco-friendly concept optimizes the energy consumption of the shaking incubator and provides more process reliability.

Key Features

  • Large shaking capacity with small footprint
  • Hygienic design according to DIN EN ISO 14159
  • Improved direct drive: stronger, higher shaking frequencies, very long lasting
  • Up to three machines can be stacked without additional components: incubators ISF1-X/W and new ISF1-Z mixable in stack
  • Flexible and retrofittable: all options and accessories applicable
  • Fast, direct information through parallel and clear display of all process parameters
  • Biopharmaceutical and Biotechnology
  • Pharmaceutical
