Lauda Scientific - Viscotemp - Viscothermostats with Stainless Steel Bath

Economical Laboratory Heating Viscothermostats with Stainless Steel Bath

LAUDA ECO stands out due to its range of functionality and ease of use. A menu navigation in plain text allows easy operation of the devices. Both control heads are equipped with a mini-USB interface as standard. Further interfaces are available as modules. Another innovation is the practical allocation of a flow-rate switch at the front on the control head. This means that individual adjustment of the flow between internal and external circulation is possible even during operation.

Precise, Economical, Flexible

LAUDA ECO Viscotemp 15, 24 and 40 viscothermostats with high-quality stainless steel baths and galss windows can be used in the most common temperature range form 0 to 105°C. The clearly designed single-chamber systems with optional backgrund lighting provide a glass-clear view and can be easilty cleaned. They are ideal for determining, for example, the viscosity index of motor oils or the solution viscosity of plastics. With the Therm 180 heat transfer liquid, the thermostats can be operated as a corrosion-resistant thermostating bath for aggressive samples, e.g. for polyamides dissolved in sulfuric acid.

LAUDA ECO Heating Viscothermostats - Control Head Silver

LAUDA ECO control head Silver with 2.0 kW heater power (230 V) are now perfectly suited for thermostatting tasks up to 200°C. They are fitted with a monochrome LCD display.

LAUDA ECO Heating Viscothermostats - Control Head Gold

LAUDA ECO control head Gold with heating power of 2.6 kW (230 V) have a working temperature of up to 200°C. They are provided with a larger colored TFT display. Temperature profiles can be displayed graphically. A comprehensive programer with five programs and 150 temperature-time segments is a further distinctive feature compared to Silver.

Technical specifications

Working temperature range	0...105°C
Temperature stability	0.01 ±K
Heater Power (Silver)	1.3 kW (115 V) 2.0 kW (230 V)
Heater Power (Gold)	1.3 kW (115 V) 2.6 kW (230 V)
Pump pressure max.	0.55 bar
Pump flow max.	22 L/min
Bath depth	320 mm

Available models

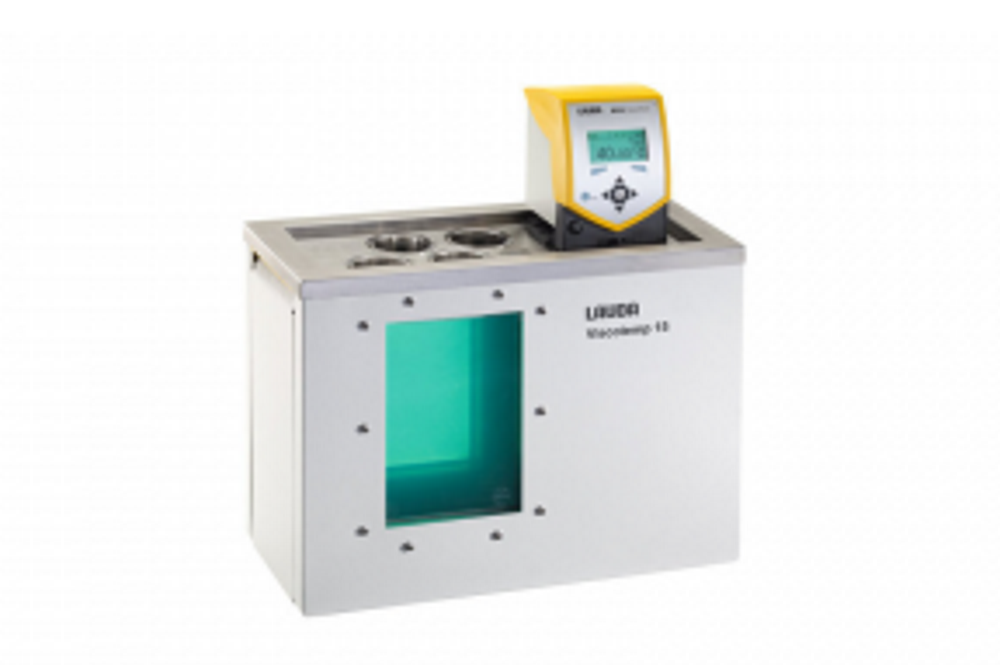

LAUDA Viscotemp 15 S/G

Technical Specifications
Working temperature range	0...105°C
Temperature stability	0.01 ±K
Heater Power (Silver)	2.0 kW (230 V) 1.3 kW (115 V)
Heater Power (Gold)	2.6 kW (230 V) 1.3 kW (115 V)
Pump pressure max.	0.55 bar
Pump flow max.	22 L/min
Bath volume	19 L
Bath Opening /Depth	252 × 145 / 320 mm
Glass pane size	152 × 233 mm
Dimensions	532 × 233 × 552 mm

Viscotemp 15 type offers space for up to four manual measuring stations or two automatic measuring stands, iVisc or S 5 (PVS).

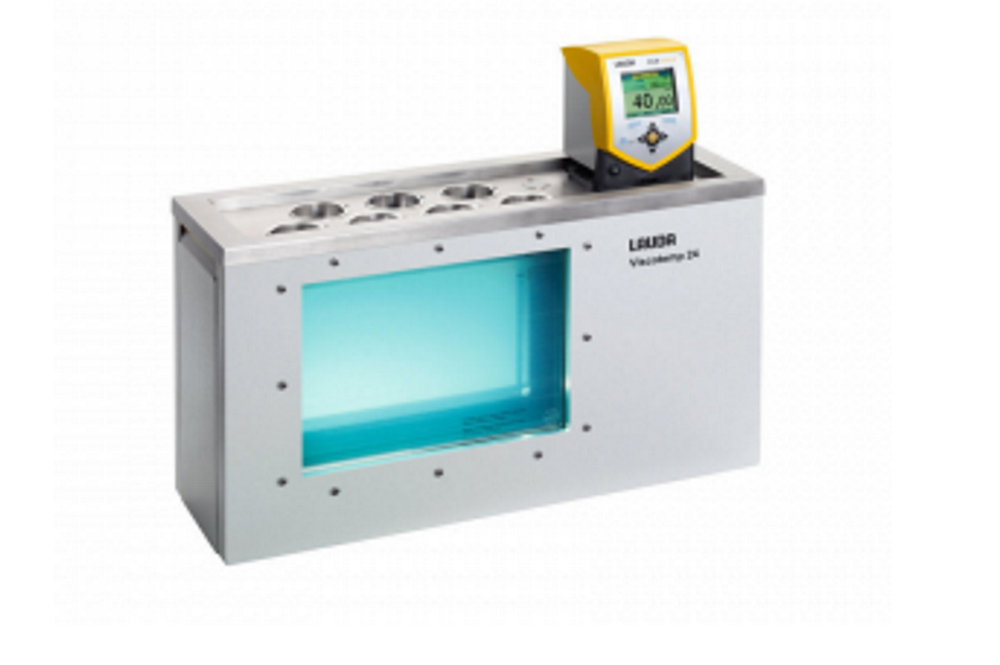

LAUDA Viscotemp 24 S/G

Technical Specifications
Working temperature range	0...105°C
Temperature stability	0.01 ±K
Heater Power (Silver)	2.0 kW (230 V) 1.3 kW (115 V)
Heater Power (Gold)	2.6 kW (230 V) 1.3 kW (115 V)
Pump pressure max.	0.55 bar
Pump flow max.	22 L/min
Bath volume	27 L
Bath Opening /Depth	430 × 145 / 320 mm
Glass pane size	329 × 233 mm
Dimensions	708 × 233 × 552 mm

Viscotemp 24 has space for seven viscometers or up to four automatic measuring stands. Both Viscotemp 15 and Viscotemp 24 can be fitted with cleaning modules.

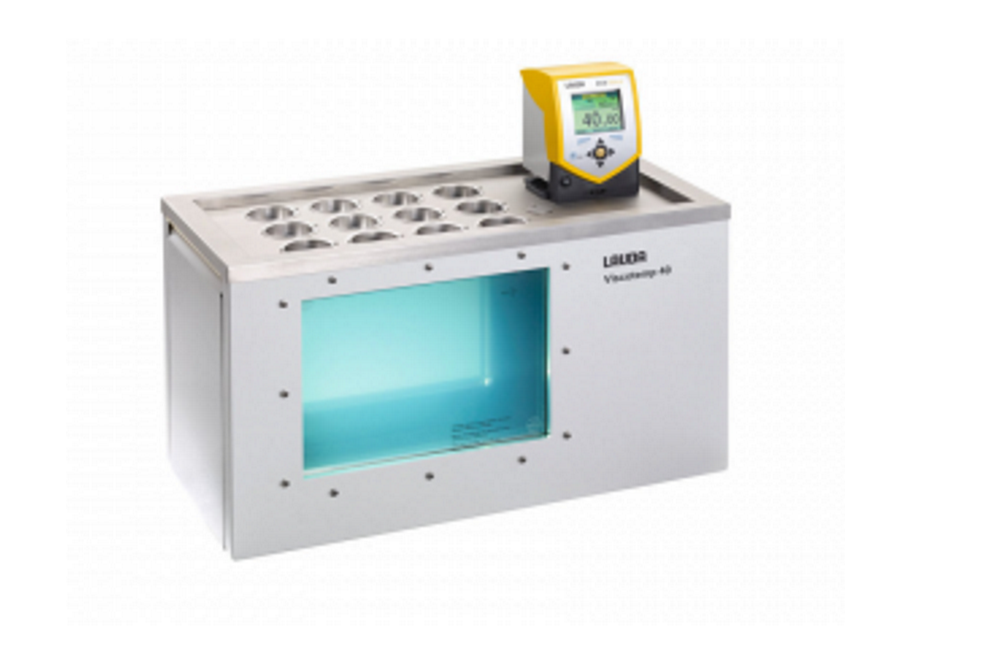

LAUDA Viscotemp 40 S/G

Technical Specifications
Working temperature range	0...105°C
Temperature stability	0.01 ±K
Heater Power (Silver)	2.0 kW (230 V) 1.3 kW (115 V)
Heater Power (Gold)	2.6 kW (230 V) 1.3 kW (115 V)
Pump pressure max.	0.55 bar
Pump flow max.	22 L/min
Bath volume	44 L
Bath Opening /Depth	430 × 250 / 320 mm
Glass pane size	329 × 233 mm
Dimensions	708 × 328 × 552 mm

Viscotemp 40 was designed exclusively for manual measurements with twelve measuring stations.

Key Features

Easy and intuitive operation with clearly readable parameters on LCD / TFT display
Programer allows automation of temperature variations and test series
Strong circulation pump with six levels allow adaptation of pump power to applications and different bath sizes
Provides user with flexible control options with a range of different module options (ANalog, RS232/485, contact, Profibus, Ethernet, EtherCAT, Pt100/LiBus)
Command remote control is possible via LiBus module.
Possible computer connection via mini-USB enables easy software updates
Drain valves as standard for easy and safe changing of heat transfer liquids
