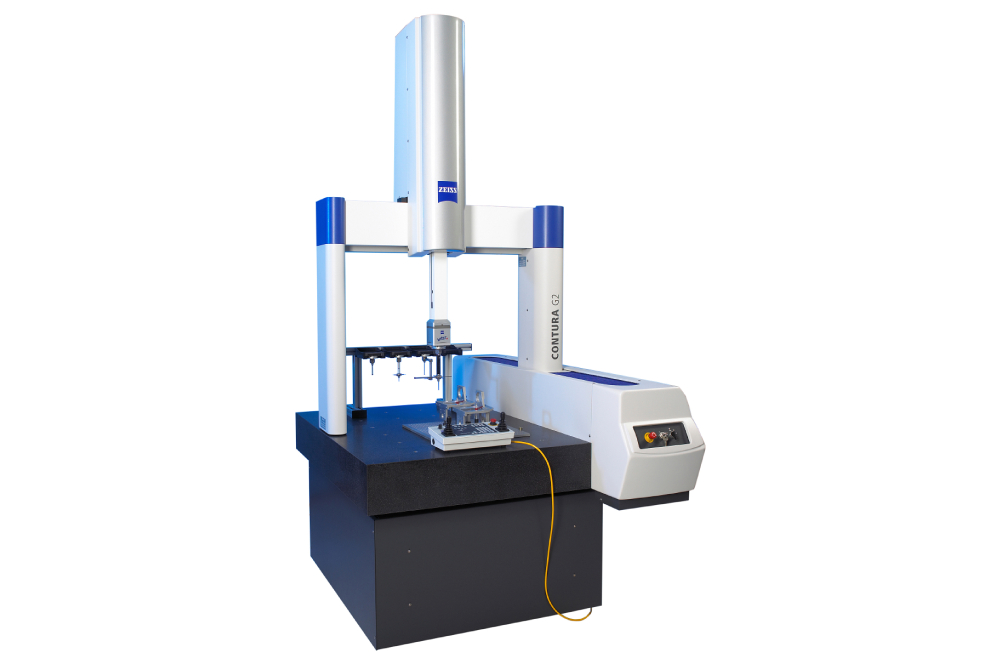

CONTURA

The CMM that brought active scanning to small and midsize manufacturers offer greater flexibility and accuracy. The robust machine design of CONTURA G2 ensures reproducibly precise measuring results and allows for the option of passive or active technology.

CONTURA G2 RDS VAST XXT is optimally used for measuring complex features and parts with multiple angles that require very small stylus, as ZEISS RDS articulating probe holder can reach 20,376 positions in 2.5º increments.

Technical Specifications

Measuring range - XYZ	700x700x600 mm.
Workpiece weight	Maximum 560 Kg.
Machine weight	1278 Kg.
Dimensions (WxDxH)	1430x1525x2800 mm.

Key Features

Robust design

Granite table provides a durable and secure surface for your parts.
Ceramic guideway technology in X and Z offers rigidity and stability against temperature changes, moisture, and other contaminants.
The measuring scales are less susceptible to dirt and contamination.
All 3 axes have support with 4-sided air bearings.
Switches for operation type, Emergency Stop, and Start, Run, and Reset.

CAA (Computer Aided Accuracy)

Computer-aided error correction of the kinematics for very accurate results.

Control panel

Computer independent, standard panel.
Dual graduated control joysticks for easy and more precise remote control of 3-axis movement.
Variable speed control in CNC modes.

C99 Controller

Optimized to machine and sensor.
ZEISS Active Scanning or touch-trigger and passive scanning.

Key Industries

Machinery & Manufacturing
