Microwave-powered UV Curing Systems

LightHammer^® 6 MARK II

LightHammer^® 10 MARK III

Heraeus Noblelight invented microwave-powered UV curing system

Heraeus Noblelight invented microwave-powered UV curing system technology. Compared to arc lamp curing technology, it offers significant improvements in production speeds, process consistency, operating lifetimes, and reduced heat onto the substrate. Heraeus Noblelight’s easy-to-service modular design provides process flexibility with lower cost of ownership.

Microwave-Powered UV Curing Systems

Our microwave-powered UV curing system products are available in a variety of power classes and with a choice of different UV broadband wavelength output bulbs to meet your industrial curing needs. These UV curing systems easily retrofit into existing production lines or can easily integrate into new production processes. Our newest systems are Industry 4.0 ready with imbedded sensors and microprocessors.

Heraeus microwave-powered UV curing systems consist of three primary components

Electrodeless bulb - long guaranteed service life of 6,000 to 8,000 hours, consistent output, available in various wavelengths so you can optimize the UV curing to your specific process needs.
Lamp module - available in either 6-inch or 10-wide air-cooled modules, combined to span across any width process or position around three-dimensional parts, switch off individual modules not needed to reduce operating costs.
Power supply - provides efficient operation and flexible control.

Available models

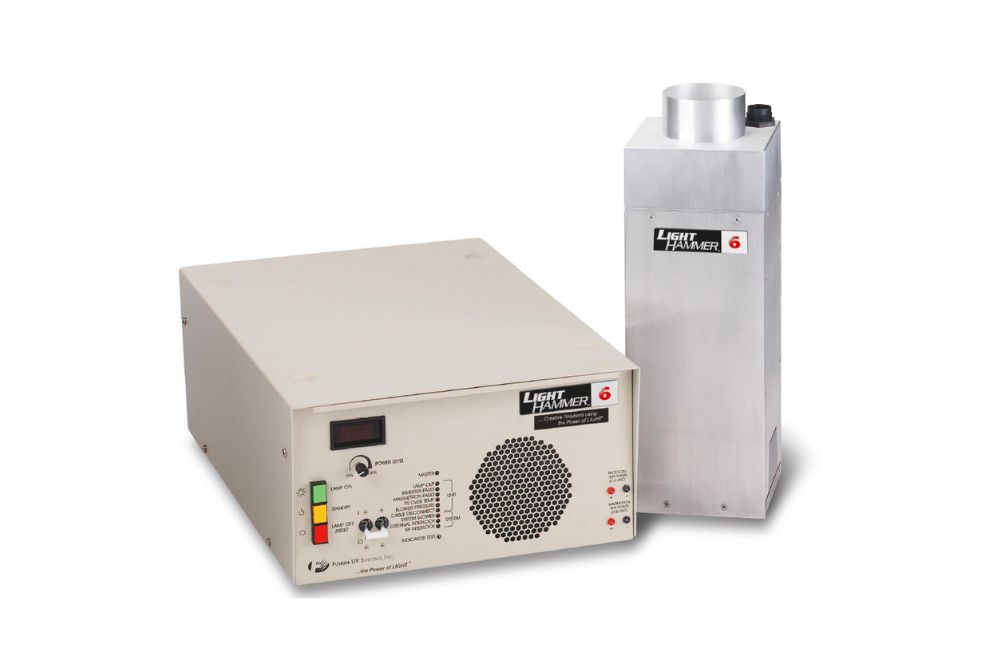

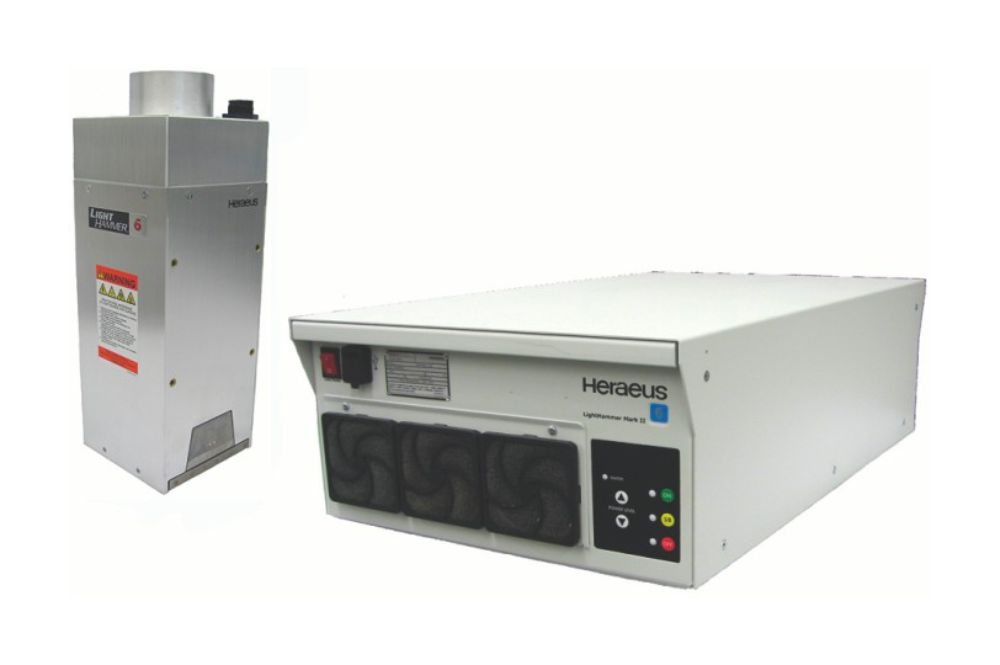

LightHammer^® 6 MARK II

LightHammer^® 6 MARK II
Lamp bulb length	15 cm, available in D, H, and V spectra
Power class	200 W/cm (500 W/in)
Variable power capability	35% to 100%, fast on/off cycles
Irradiator footprint (W x L)	168 x 168 mm

This system includes a 6-inch wide irradiator (lamp module), electrodeless bulb and solid-state power supply. Available with integral or external blower for cooling.

Smart Power Supply: Flexible control scheme via software, reduced operating costs, smaller and lighter weight

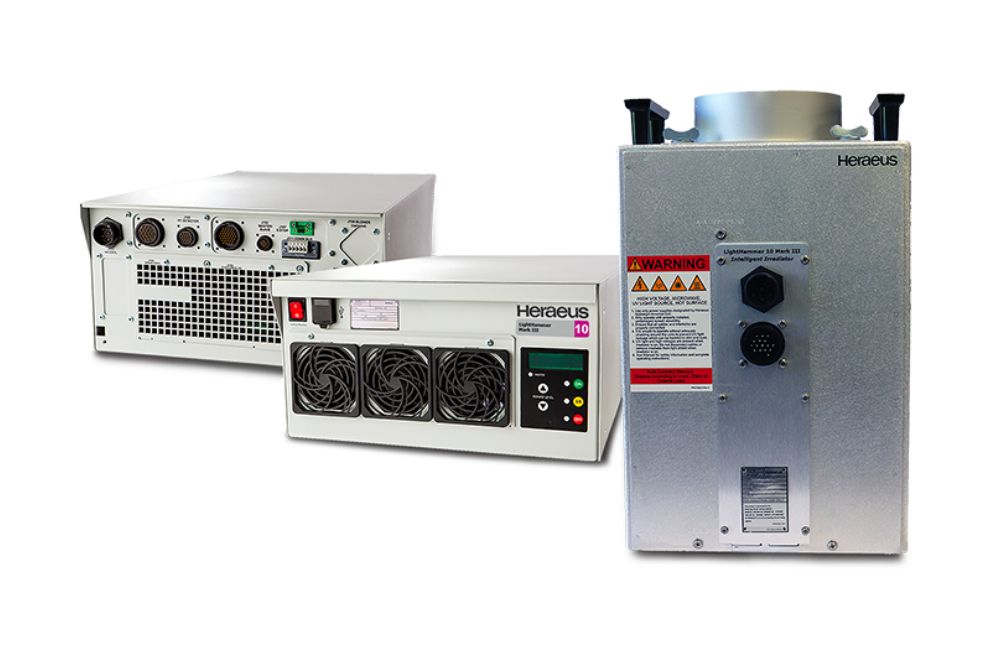

LightHammer^® 10 MARK III

LightHammer^® 10 MARK III
Lamp bulb length	25 cm, available in D, H, and V spectra
Power class	240 W/cm (600 W/in)
Variable power capability	35% to 100%, fast restarting
Irradiator footprint	W: 419mm, L: 777mm, H: 217mm (with the connector included)

This system includes a 10-inch wide intelligent irradiator (lamp module), electrodeless bulb and solid-state power supply. Requires external blower for cooling.

Smart Power Supply: Flexible control scheme via software, reduced operating costs, smaller and lighter weight
Intelligent Irradiator: Sensors inside the lamp module measure 8 operating parameters, use real-time data monitoring to increase up-times and lower total cost of ownership

Key Features

Optimal Adjustment to the Process

Modular lamp head design for different curing widths or placement around three-dimensional parts, adjustable output intensity, and a variety of available bulbs to optimize curing efficiency for different manufacturing processes.

Reliable and Constant Quality

Our US manufacturing facility is ISO 9001 certified and all systems are CE, UL and TÜV compliant. Frequent on/off cycles or switching does not reduce operating lifetime - you get a long lasting system that requires less maintenance.

Cost Saving

Compared to arc lamp systems, our microwave-powered UV curing systems reduce scrap rates and require less maintenance.

Increased Saving

With high intensities at the substrate and consistent output, plus longer life than arc lamp systems, our microwave-powered UV curing systems reduce scrap rates and downtime resulting in higher production rates.
