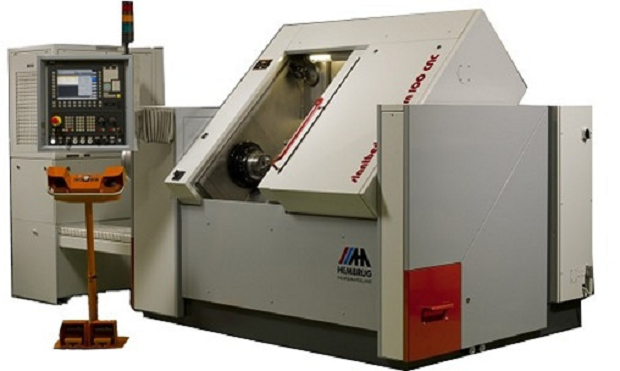

For small to medium size workpieces up to Ø 380 mm or Ø 130×350 mm between centers. Can be equipped with a Siemens 840 SL or Fanuc 32i control.

The two Hembrug Slantbed-Mikroturn 100 CNCs continue to be high yield, high accuracy machine tools. The machines are low maintainance and still producing parts to the highest degree of measurement accuracy.

Technical specifications

Max. turning diameter (mm)	380
Max. turning diameter between centers (mm)	130 - 350
Max. workpiece weight incl. chuck (kg)	100
Max. spindle speed (rpm)	4000
Z(/W) axis travel (mm)	350
X(/U) axis travel (mm)	240
Rapid travers rate (m/min)	10
Slide repeatability (µm)	0.1
Position accuracy (µm)	1
CNC-Resolution (µm)	0.001
Max. feed rate (m/min)	0 - 10

Key features Mikroturn® 100

Rigid natural granite machine base with an integrated system of vibration dampers
Headstock housing of natural granite for improved static and dynamic stiffness and thermal stability
Hydrostatic, high speed linear driven X- and Z-slide with a ± 0.1 µm repeatability
Sealed type direct linear slide measuring system -Hydrostatic main spindle with a 0.1 µm run-out.
External hydraulic service unit.
Heat and vibration generating elements are fully isolated from the machine
Siemens 840D control with a 0.001 micron resolution
Go to the machine construction page to learn more about the construction of the Mikroturn machine series.
