Tele-Fonika - Cables

Leading producer of cables and cable systems

The TELE-FONIKA Kable Group has been present on the domestic and international cable industry market for more than 25 years. A stable development strategy based on full diversification of outlets enabled the strengthening of the position of the company among world’s leading cable companies with significant development potential.

Services and products provided by TF Kable have numerous applications in the most important industry sectors – they include more than 25,000 proven standard constructions. Furthermore, they include specialist assortment tailored to the individual needs of business partners.

Our range of Tele-fonika cable

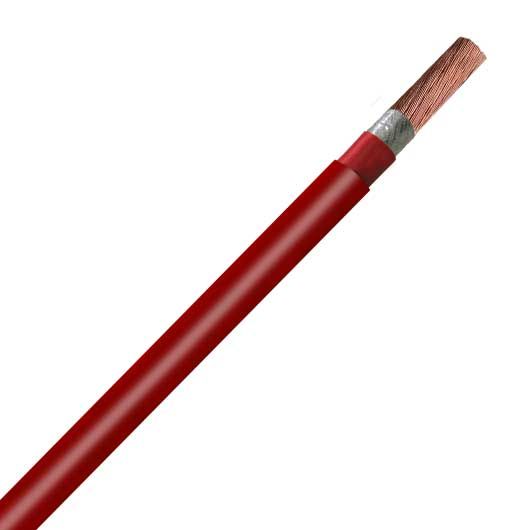

DKSH-TFKABLE-fire-rated-FR3013-single-core

Flexible bare copper class 5 fine wire stranding, glass mica tape, cross-linked, halogen free, flame-retardant compound type X-HF-110 acc. to AS/NZS 3808, red low smoke halogen-free type HSF-110TP metre marked sheath to AS/NZS 3808.



Features

  • Flame-retardant
  • UV-resistant
  • Halogen-free

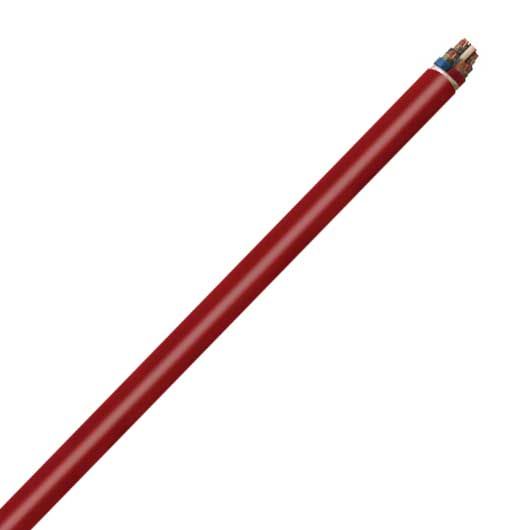

DKSH-TFKABLE-fire-rated-FR3013-multi-core

Flexible bare copper class 5 fine wire stranding, glass mica tape, cross-linked, halogen free, flame-retardant compound type X-HF-110 acc. to AS/NZS 3808, red low smoke halogen-free type HSF-110TP metre marked sheath to AS/NZS 3808.



Features

  • Flame-retardant
  • UV-resistant
  • Halogen-free

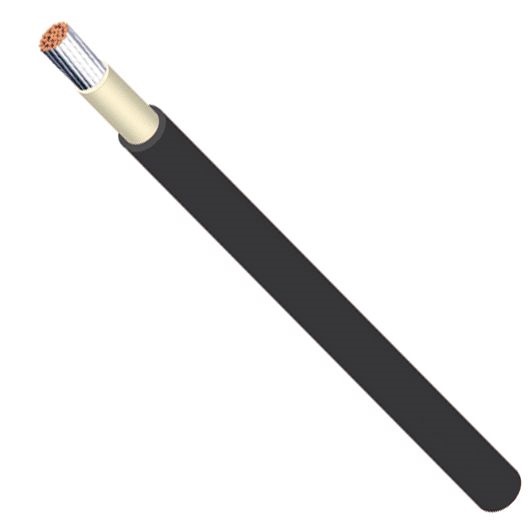

DKSH-Tele-Fonika-H07RN-F-single-core

Class 5 tinned copper conductors, colour or number coded ethylene-propylene rubber insulating material, flame-retardant, UV, ozone and oil-resistant black rubber sheath, metre marked.



Features

  • Submersible to 500 metres
  • Flame-retardant
  • UV-resistant, oil-resistant
  • Tinned conductors

DKSH-Tele-Fonika-H07RN-F-multicore

Class 5 tinned copper conductors, colour or number coded ethylene-propylene rubber insulating material, flame-retardant, UV, ozone and oil-resistant black rubber sheath, metre marked.



Features

  • Submersible to 500 metres
  • Flame-retardant
  • UV-resistant, oil-resistant
  • Tinned conductors

DKSH-Tele-Fonika-Rubber-cable-R-E-110

Highly flexible single conductor, SDI, low smoke, halogen free power cable

Class 6 super fine copper conductors, EPR thermosetting compound type R-E-110 insulation, halogen-free, low smoke, flame and heat retardant, UV, oil, chemical and weather-resistant orange thermosetting compound R-E-110 sheath, metre marked. Other colours available on request subject to minimum order quantity and lead time.



Features

  • Flame-retardant
  • UV-resistant
  • Halogen-free
  • 110o rated

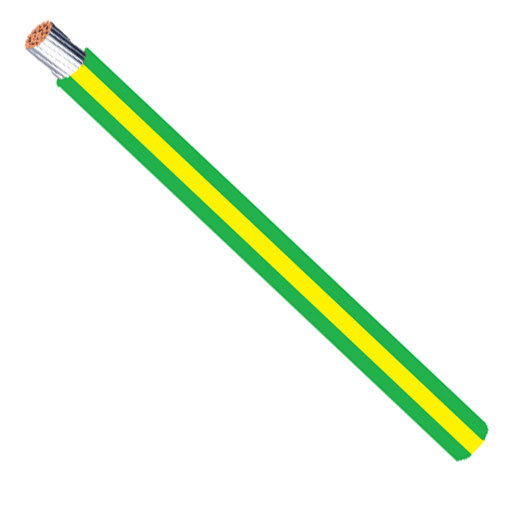

DKSH-TFKABLE-Rubber-Earth-Cable

Class 6 super fine tinned copper wire. Green/yellow ozone, oil & UV resistant, halogen-free and flame-retardant type X-HF-110 metre marked insulation.



Features

  • Flame-retardant
  • UV-resistant
  • Halogen-free
  • 110o rated

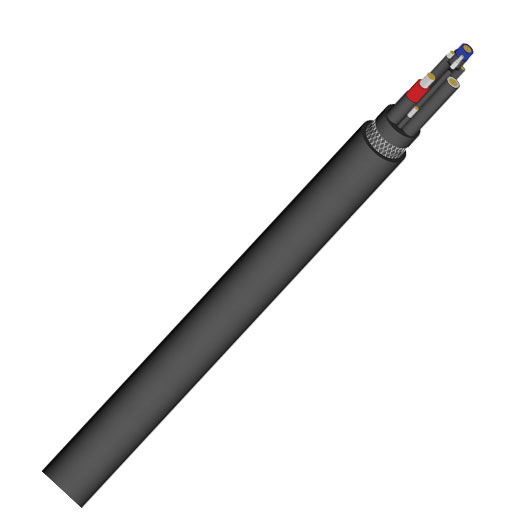

Type 241.1 Reeling and trailing cables

Suitable for underground coal mining

Class 5 tinned and annealed copper wires. Power, earth and pilot conductors comply with AS/NZS 1125:2001 and AS/NZS 1802:2003. Crush-resistant central cradle construction, flexible Ethylene Propylene Rubber (EPR) insulation, reinforced radial strengthened heavy duty jacket, oil-resistant and flame-retardant, metre marked.



Features

  • Flame-retardant
  • UV-resistant

  • Electronics
  • Machinery & Manufacturing
TELE-FONIKA Kable (TFKable)

The Group TELE-FONIKA Kable S.A. (TF Kable) is ranked in the forefront of the global cable industry and is the third largest manufacturer of cables and wires in Europe. Products manufactured by TELE-FONIKA are sold in over 80 countries. Their product portfolio includes 25,000 cable types.

The company has 460 quality certificates of manufactured goods, compliance-tested by 34 renowned certification centres in the world.
