Available Models

Compliance
IP 170; ISO 13016; NF T 66-009; DIN 51755
Temperature Range
Ambient to 110°C; Subambient to -40°C with external cooling
Power Requirements
230V 50/60Hz
Dimensions (cm)
26 x 5.53 x 50
Net weight
27.2 kg
  • Conforms to IP 170 and related specifications
  • Simple automation routine for easy operation
  • Data Storage 200 results
  • Quick Access to calibration parameters
  • Auto Diagnostic
  • Optional low gas cartridge to wok in all types of environments
  • Automatic gas cut-odd at the end of the test
  • Optional cryostat required for samples having a FP below 40°C
  • Automatic Electronic Control of the heating rate during testing
  • Heating by Solid Block Element
  • Cooling by External Cryostat

Compliance
IP 170, ISO 13736
Temperature Range
-30°C and 70°C
Power Requirements
220-240V 50/60Hz
Dimensions (cm)
25.4 x 44.5 x 29.2
Net weight
11.34 kg

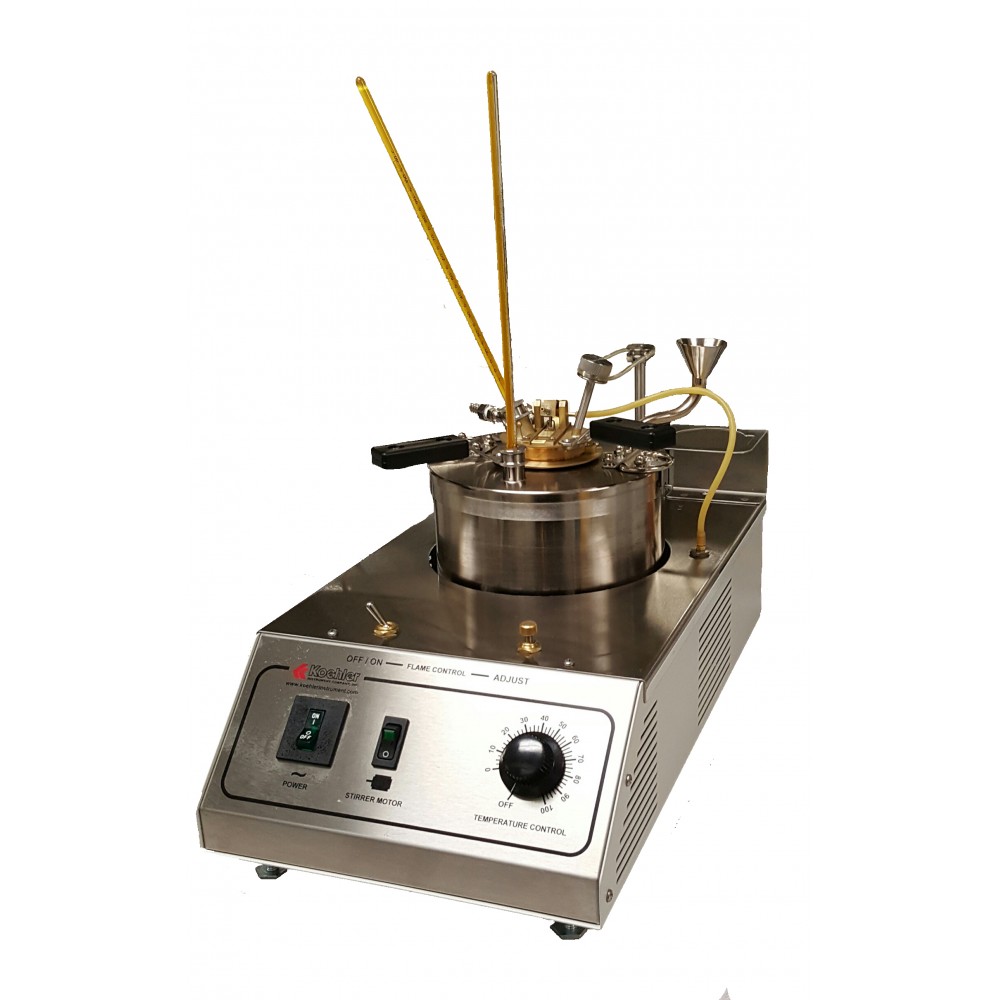

The Abel Closed cup flash point tester is used primarily to test flammable and combustible materials for shipping and safety regulations. Consists of test flame applicator, brass test cup, thermometer support, heating plate and electric heater. Applicator is precisely aligned per specifications and pivots for test flame application at specified temperature intervals. Hinged thermometer support raises to facilitate placement and removal of test cup. Adjust flame size using built-in needle valve and comparison bead. Equipped with a 400W nickel-chromium heater with stepless variable heat control for accurate repeat setting of temperature rate of rise per specifications

  • Conforms to IP 170 and related specifications
  • For flash points between -30°C and 70°C

Compliance
IP 170; ISO 13016; NF T 66-009; DIN 51755
Temperature Range
Ambient to 110°C; Subambient to -40°C with external cooling
Power Requirements
230V 50/60Hz
Dimensions (cm)
26 x 5.53 x 50
Net weight
27.2 kg
  • Conforms to IP 170 and related specifications
  • Simple automation routine for easy operation
  • Data Storage 200 results
  • Quick Access to calibration parameters
  • Auto Diagnostic
  • Optional low gas cartridge to wok in all types of environments
  • Automatic gas cut-odd at the end of the test
  • Optional cryostat required for samples having a FP below 40°C
  • Automatic Electronic Control of the heating rate during testing
  • Heating by Solid Block Element
  • Cooling by External Cryostat

Compliance
IP 170, ISO 13736
Temperature Range
-30°C and 70°C
Power Requirements
220-240V 50/60Hz
Dimensions (cm)
25.4 x 44.5 x 29.2
Net weight
11.34 kg

The Abel Closed cup flash point tester is used primarily to test flammable and combustible materials for shipping and safety regulations. Consists of test flame applicator, brass test cup, thermometer support, heating plate and electric heater. Applicator is precisely aligned per specifications and pivots for test flame application at specified temperature intervals. Hinged thermometer support raises to facilitate placement and removal of test cup. Adjust flame size using built-in needle valve and comparison bead. Equipped with a 400W nickel-chromium heater with stepless variable heat control for accurate repeat setting of temperature rate of rise per specifications

  • Conforms to IP 170 and related specifications
  • For flash points between -30°C and 70°C

  • Chemical
  • Education & Academics
  • Environmental
  • Oil & Gas
  • Chemical
  • Education & Academics
  • Environmental
  • Oil & Gas
Koehler Instrument CompanyProviding quality testing instrumentation and technical support services for research and testing laboratories has been our specialty since 1925. Meeting your testing needs is the primary focus of our business, which is why Koehler Instrument Company is a leading producer and supplier of petroleum, synfuels and petrochemical instrumentation worldwide. At Koehler, we pride ourselves in innovation. In a time of continuous technological advancement and transition we are constantly implementing new and improved ways to surpass the needs of an ever-evolving industry. Koehler products are backed by our staff of technically knowledgeable, trained specialists who are experienced in both petroleum products testing and instrument service, which is carried out either on site or at a Koehler service center.
