	InfraCal 2 ATR-SP	InfraCal 2 TRANS-SP	InfraCal 2 ATR-B	InfraCal 2 ATR-E
Analytical Wavelength/Wave Number	3.4 µm, 2930 cm-1	3.4 µm, 2930 cm-1	5.7 µm, 1745 cm-1	9.6 µm, 1045cm-1
Power Requirements	18 volts DC, 3.3 amps, internal battery pack available	18 volts DC, 3.3 amps, internal battery pack available	18 volts DC, 3.3 amps, internal battery pack	18 volts DC, 3.3 amps, internal battery pack
Power Supply	Universal AC/DC provided	Universal AC/DC provided	Universal AC/DC provided	Universal AC/DC provided
Weight	5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)	5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)	5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)	5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)
Dimensions	(17 cm) x 7.8" (19.8 cm) x 5.2" (13.2 cm)	(17 cm) x 7.8" (19.8 cm) x 5.2" (13.2 cm)	(17 cm) x 7.8" (19.8 cm) x 5.2" (13.2 cm)	(17 cm) x 7.8" (19.8 cm) x 5.2" (13.2 cm)
Suggested Operating Range	5°C - 40°C	40°F (5°C) – 110°F (40°C)	5°C - 40°C	5°C - 40°C
Analysis Time	10-15 minutes, including extraction process	10-15 minutes, including extraction process	Less than 30 seconds	Less than 30 seconds
Instrument Repeatability	±0.3 ppm	±0.1 ppm	0 - 30%±0.2%, 20 - 100%±1% of biodiesel (FAME) concentration	0 - 20%±0.2%, 20 - 98%±1% of ethanol in petrol concentration
Communication Port	USB	USB, RS 232	USB, RS 232	USB, RS 232

InfraCal 2 ATR-SP

InfraCal 2 TRANS-SP

InfraCal 2 ATR-B

InfraCal 2 ATR-E

Analytical Wavelength/Wave Number

3.4 µm, 2930 cm-1

5.7 µm, 1745 cm-1

9.6 µm, 1045cm-1

Power Requirements

18 volts DC, 3.3 amps, internal battery pack available

18 volts DC, 3.3 amps, internal battery pack

Power Supply

Universal AC/DC provided

Weight

5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)

Dimensions

(17 cm) x 7.8" (19.8 cm) x 5.2" (13.2 cm)

Suggested Operating Range

5°C - 40°C

40°F (5°C) – 110°F (40°C)

5°C - 40°C

Analysis Time

10-15 minutes, including extraction process

Less than 30 seconds

Instrument Repeatability

±0.3 ppm

±0.1 ppm

0 - 30%±0.2%, 20 - 100%±1% of biodiesel (FAME) concentration

0 - 20%±0.2%, 20 - 98%±1% of ethanol in petrol concentration

Communication Port

USB

USB, RS 232

Available models

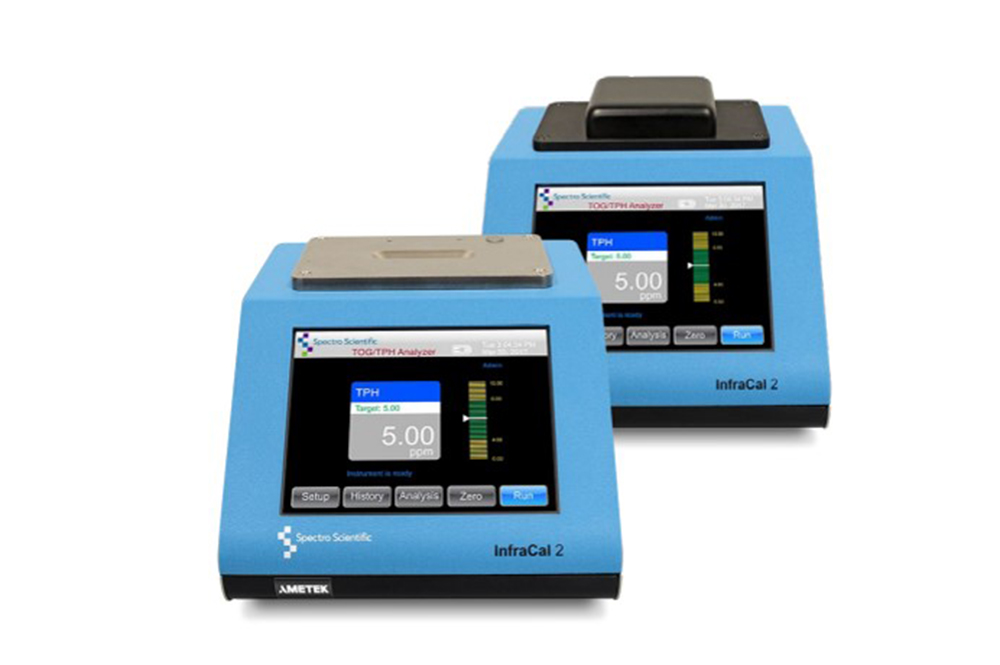

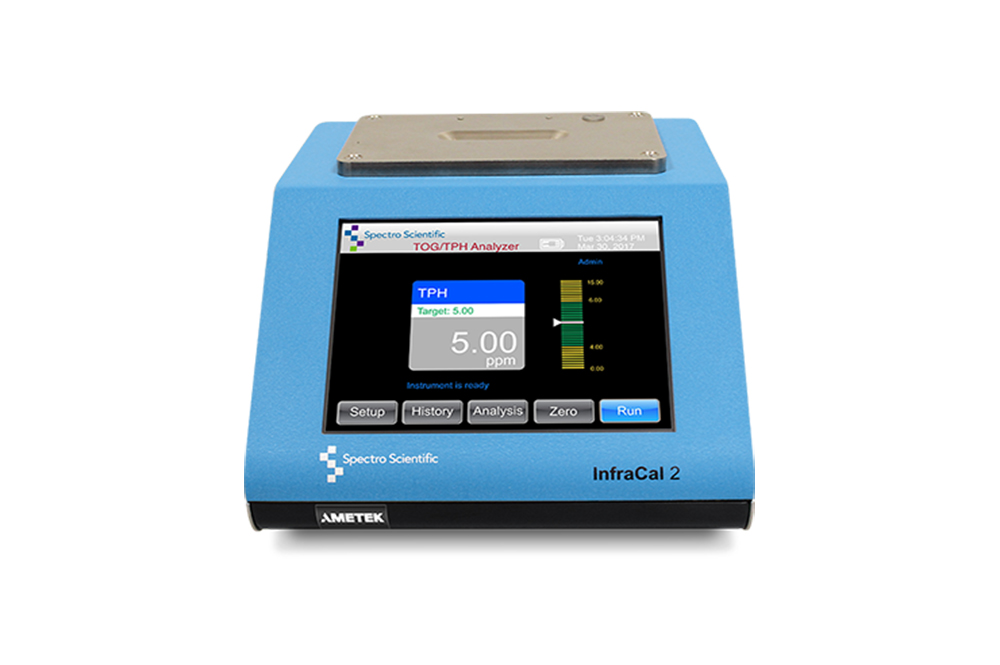

InfraCal 2 ATR-SP - Oil In Water/Soil Analyser

Technical specifications
Analytical Wavelength/Wave Number	3.4 µm, 2930 cm-1
Power Requirements	18 volts DC, 3.3 amps, internal battery pack available
Power Supply	Universal AC/DC provided
Weight	5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)
Dimensions	(17 cm) x 7.8" (19.8 cm) x 5.2" (13.2 cm)
Suggested Operating Range	5°C - 40°C
For Water	0.3-2000+ ppm 0.3-15+%
For Soil	3-2000+ ppm 0.3-15+%
Analysis Time	10-15 minutes, including extraction process
Instrument Repeatability	±0.3 ppm
Communication Port	USB

The InfraCal Model ATR-SP is recommended for measuring oil in water, TPH in soil or FOG in wastewater concentration levels when using hexane, pentane or Vertrel MCA as the extracting solvent. Measurement data obtained with this analyzer will correlate to EPA Method 1664 as both procedures are based on evaporation techniques and measuring the residual oil and grease. The analyzer is equipped with a built-in cubic zirconia horizontal attenuated total reflection (HATR) stainless steel sample stage. The InfraCal 2 ATR-SP is a direct replacement for the original InfraCal HATR-T2 used worldwide for the determination of TOG/TPH in water and soil.

Minimum Detection Limit Water: 0.3 ppm
Minimum Detection Limit Soil: 3 ppm
Method Compares: EPA 1164 & ISO 9377-2
Solvents: Hexane, pentane, cyclohexane & Vertrel MCA

Read more on our partner's website

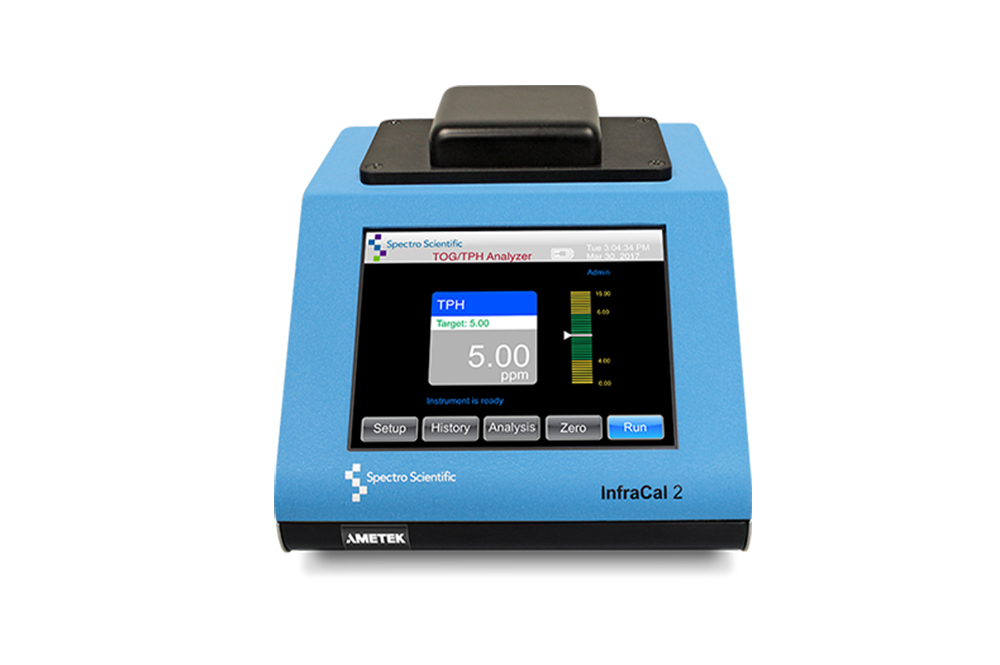

InfraCal 2 TRANS-SP - Oil In Water/Soil Analyser

Technical specifications
Analytical Wavelength/Wave Number	3.4 µm, 2930 cm-1
Power Requirements	18 volts DC, 3.3 amps, internal battery pack available
Power Supply	Universal AC/DC provided
Weight	5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)
Dimensions	(17 cm) x 7.8" (19.8 cm) x 5.2" (13.2 cm)
Suggested Operating Range	40°F (5°C) – 110°F (40°C)
For Water	0.1-2000+ ppm
For Soil	1-2000+ ppm
Analysis Time	10-15 minutes, including extraction process
Instrument Repeatability	±0.1 ppm
Communication Port	USB, RS 232

The InfraCal 2 TRANS-SP is recommended for measuring oil in water, TPH in soil or FOG in wastewater concentration levels using the traditional EPA methods 413.2 and 418.1 or ASTM method D7066-04 and Freon-113, hydrocarbon-free grade of perchloroethylene, AK-225, S-316 or other spectroscopic infrared transparent solvent as the extracting solvent. Since the extract is deposited into a 10 mm quartz cuvette cell with Teflon stopper, light end volatile components are retained for measurement. Accurate down to 0.1 ppm.

The InfraCal 2 TRANS-SP, the latest introduction to our easy to use analyzers, uses the same measurement technology as the original InfraCal Model CVH, with added features such as data storage and transfer, multiple calibrations and password protection for instrument settings.

MDL Water: ;0.1ppm
MDL Soil: 1ppm
Solvent(s): Perchloroethylene, S-316, Freon-113
Method Compares: EPA 1664, ISO 9377-2
Method Complies: ASTM D7066, EPA 413.2, EPA 418.1

Read more on our partner's website

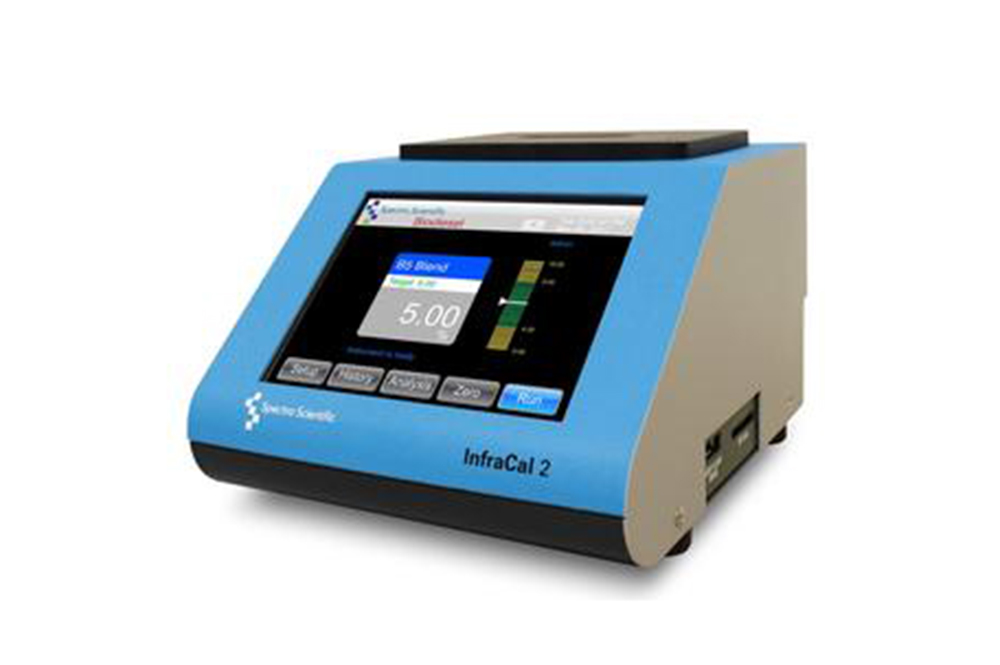

InfraCal 2 ATR-B - Biodiesel In Diesel Analyser

Technical specifications
Analytical Wavelength/Wave Number	5.7 µm, 1745 cm-1
Power Requirements	18 volts DC, 3.3 amps, internal battery pack
Power Supply	Universal AC/DC provided
Weight	5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)
Suggested Operating Range	5°C - 40°C
Measurement Range	0 - 100% Biodiesel in Diesel
Analysis Time	Less than 30 seconds
Instrument Repeatability	0 - 30%±0.2%, 20 - 100%±1% of biodiesel (FAME) concentration
Communication Port	USB, RS 232

The InfraCal 2 Biodiesel Blend Analyzer for measuring percent biodiesel in diesel is the ideal solution where a quick, accurate, on-site measurement is required and a single, repetitive biodiesel blend analysis is needed. The InfraCal 2 ATR-B is based on proven IR technology, originally developed by Wilks, and used by fuel distributors, blenders, producers and regulatory agencies worldwide. The compact, easy-to-use Biodiesel Blend Analyzer has a measurement range of 0 – 100% biodiesel in diesel. These results are comparable to both ASTM D7371 and EN 14078, laboratory methods that require expensive FTIR Spectrometers.

Samples are applied to a zinc selenide attenuated total reflectance (ATR) sample plate for immediate results. The analysis can be done by non-technical personnel with no formal training and is ideal for lab or field use. The InfraCal2 ATR-B has a touch screen display, internal data storage and transfer, a multi-language interface and password protected settings. The internal battery pack allows for portability and up to 6 hours continuous use, providing results in under a minute at a fuel loading rack, in a laboratory or at a pump in a fueling station.

Measurement range: 0 - 100% biodiesel
Instrument repeatability: 0 – 30% +/- 0.2% ; 30-100% +/-1.0%
Compares to ASTM D7371 & EN 14078

Read more on our partner's website

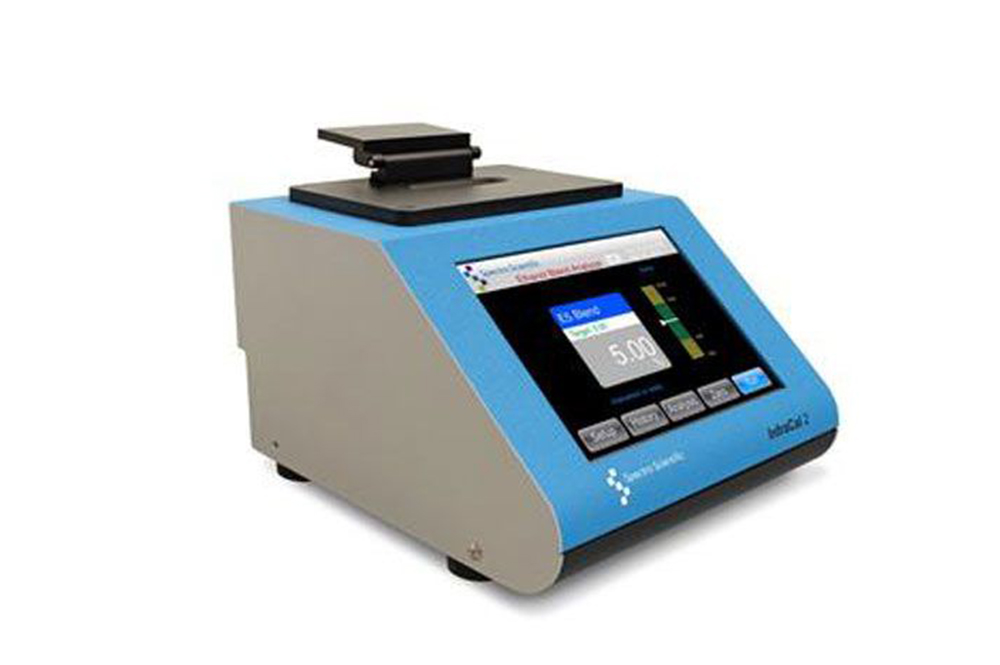

InfraCal 2 ATR-E - Ethanol In Gasoline Analyser

Technical specifications
Analytical Wavelength/Wave Number	9.6 µm, 1045cm-1
Power Requirements	18 volts DC, 3.3 amps, internal battery pack
Power Supply	Universal AC/DC provided
Weight	5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg)
Suggested Operating Range	5°C - 40°C
Measurement Range	0 - 20 & 70 - 98% ethanol in gasoline
Analysis Time	Less than 30 seconds
Instrument Repeatability	0 - 20%±0.2%, 20 - 98%±1% of ethanol in petrol concentration
Communication Port	USB, RS 232

The InfraCal 2 Ethanol Blend Analyzer for measuring percent ethanol in gasoline is the ideal solution where a quick, accurate, on-site measurement is required and a single, repetitive ethanol blend analysis is needed. The InfraCal 2 ATR-E is based on proven IR technology, and used by fuel terminals, laboratories and regulatory agencies worldwide. The compact, easy-to-use InfraCal 2 ATR-E has a measurement range of 0-20 & 70-98%% ethanol in gasoline and an accuracy of +/- 0.2%. These results are comparable to ASTM D4815.

Samples are applied to a zinc selenide attenuated total reflectance (ATR) sample plate and easily cleaned with a cloth & isopropyl alcohol. No solvents requiring special ventilation, expensive waste disposal or difficult to clean cells are needed. The analysis can be done by non-technical personnel with no formal training and is ideal for lab or field use. The InfraCal2 ATR-E has a touch screen display, data storage and transfer, a multi-language interface and password protected settings. The internal battery pack allows for portability and up to 12 hours continuous use, providing results in under a minute at a fuel loading rack, in a laboratory or at a pump in a fueling station.

Measurement range: 0 - 20 & 70 - 98% ethanol in gasoline
Instrument repeatability: +/- 0.2%
Compares to ASTM D4815
