Haas - CNC Vertical Machining Centers - 50-Taper Standard

SINGAPORE

Robert Puschmann, Vice President, Business Unit Technology, Singapore, Malaysia, and Vietnam, Digital and Operational Excellence

+65 6643 6867
Fax +65 6273 1503
Contact Email
DKSH Singapore Pte Ltd
625 Lorong 4 Toa Payoh, #03-00
319519 Singapore
Singapore
  • Haas CNC Vertical VF-3YT/50 factsheet - Protected
    (PDF, 2 MB)
  • Haas CNC Vertical VF-12 factsheet - Protected
    (PDF, 2 MB)
DKSH-Haas-VF5-50-PNG DKSH-Haas-VF9-50-JPEG DKSH-Haas-VF12-50-JPEG

Every Haas vertical machining center (VMC) provides the features and performance you need, making it the best investment you've ever considered – providing more utility, flexibility, and productivity than you've ever imagined.

Below are just a few of the features that make Haas the high-productivity, high-value leader. And the legendary Haas control makes every Haas VMC easy to operate. Built with the operator and programmer in mind, it's packed with intuitive features you won't find on any other CNC machining center.

  • Solid foundation
  • Advanced spindle
  • Tool management
  • Extensive lineup

Technical specifications

Max Weight on Table (evenly distributed) 4000 lb / 1814 kg
Spindle max rating 30 hp / 22.4 kW
Spindle max speed 7500 rpm
Spindle max torque 340 ft-lb / 460 Nm at 700 rpm
Cooling Liquid Cooled
Axis motors: max thrust X 3400 lb / 15124 N
Axis motors: max thrust Y 4100 lb / 18238 N
Axis motors: max thrust Z 5600 lb / 24910 N

Available models

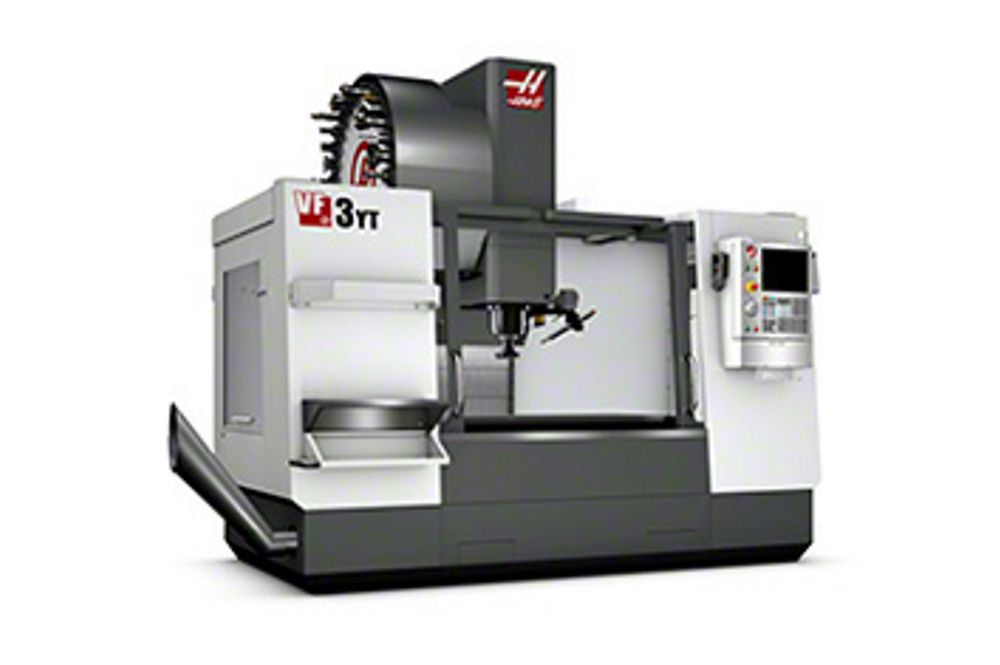

DKSH-Haas-VF3YT-T50-JPEG
Technical Specifications
VF-3YT/50
Travels: X axis
40 " / 1016 mm
Travels: Y axis
26 " / 660 mm
Travels: Z axis
25 " / 635 mm
Spindle Nose to Table
max 32.9 " / 836 mm min 7.9 " / 200 mm
Table length x width
52 " x 23 " / 1321 mm x 584 mm
Feedrates: rapids on X, Y, Z
710 in/min / 18.0 m/min
Feedrates: max cutting
500 in/min / 12.7 m/min

Product overview: VF-3YT/50

Vertical Machining Center; 40" x 26" x 25" (1016 x 660 x 635 mm), 50- taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 710 ipm (18 m/min) rapids, color remote jog handle, programmable coolant nozzle, automatic chip auger, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.

Read more on the website of our partner

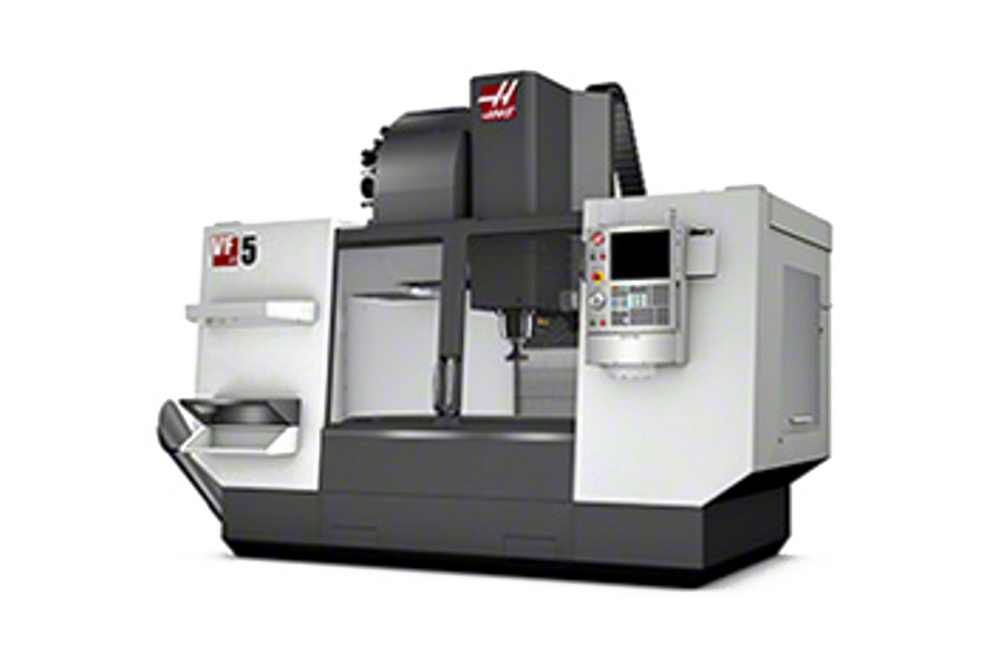

DKSH-Haas-VF5-50-PNG
Technical Specifications
VF-5/50
Travels: X axis
50 " / 1270 mm
Travels: Y axis
26 " / 660 mm
Travels: Z axis
25 " / 635 mm
Spindle Nose to Table
max 32 " / 813 mm min 7 " / 178 mm
Table length x width
52 " x 23 " / 1321 mm x 584 mm
Feedrates: rapids on X, Y, Z
710 in/min / 18.0 m/min
Feedrates: max cutting
500 in/min / 12.7 m/min

Product overview: VF-5/50

Vertical Machining Center; 50" x 26" x 25" (1270 x 660 x 635 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm,30+1 side-mount tool changer, 710 ipm (18 m/min) rapids, color remote jog handle, programmable coolant nozzle, automatic chip auger, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

Read more on the website of our partner

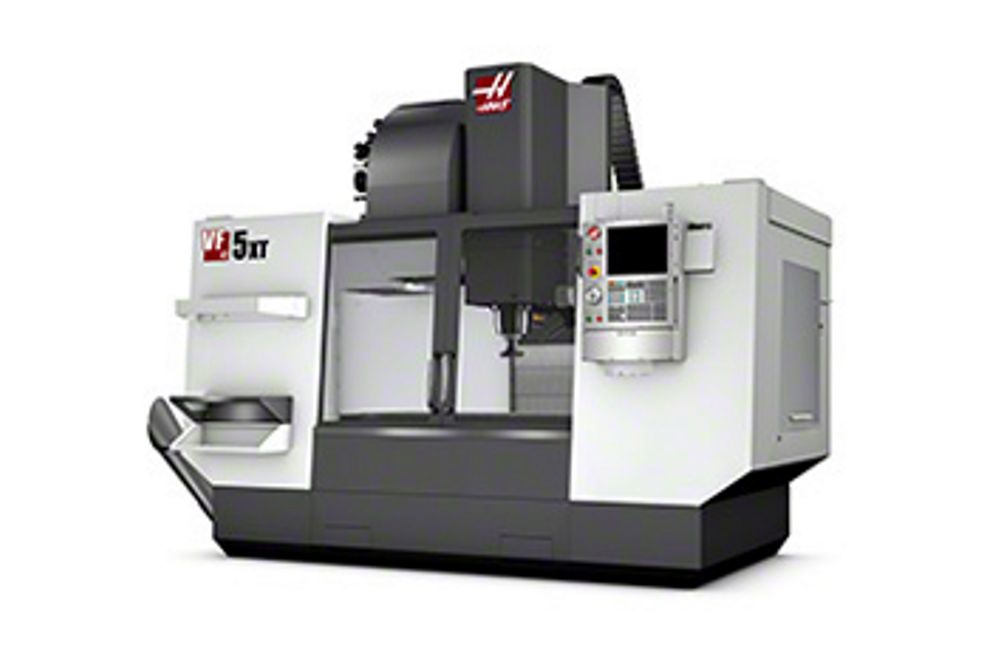

DKSH-Haas-VF5-50XT-JPEG
Technical Specifications
VF-5/50XT
Travels: X axis
60 " / 1524 mm
Travels: Y axis
26 " / 660 mm
Travels: Z axis
25 " / 635 mm
Spindle Nose to Table
max 32.9 " / 836 mm min 7.9 " / 201 mm
Table length x width
62 " x 23 " / 1575 mm x 584 mm
Feedrates: rapids on X, Y, Z
710 in/min / 18.0 m/min
Feedrates: max cutting
500 in/min / 12.7 m/min

Product overview: VF-5/50XT

Vertical Machining Center; 60" x 26" x 25" (1524 x 660 x 635 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm,30+1 side-mount tool changer, 710 ipm (18 m/min) rapids, color remote jog handle, programmable coolant nozzle, automatic chip auger, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon(360 liter) flood coolant system.

Read more on the website of our partner

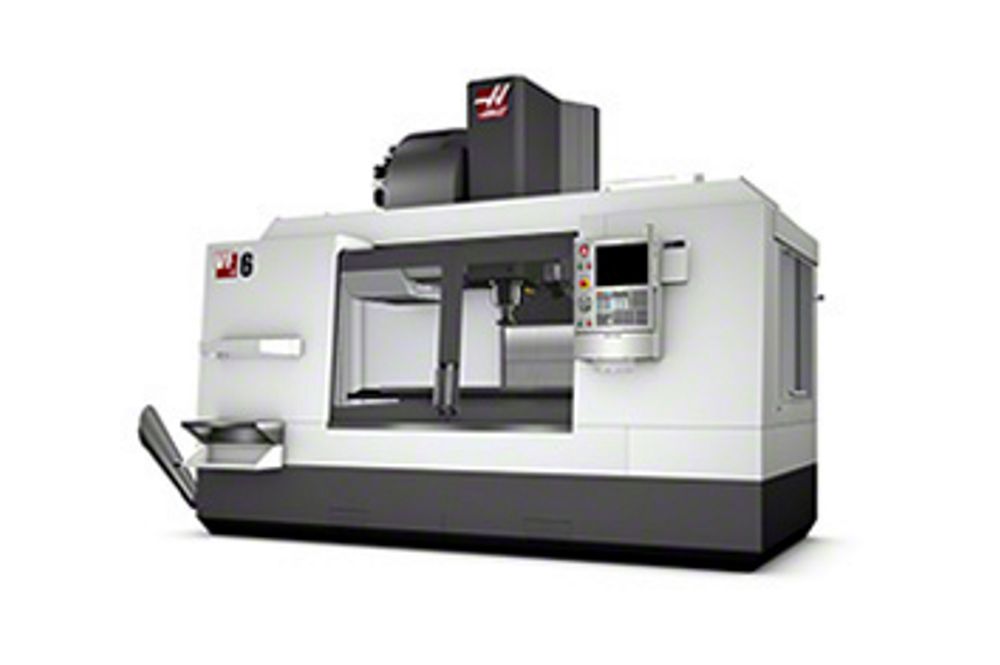

DKSH-Haas-VF6-50-JPEG
Technical Specifications
VF-6/50
Travels: X axis
64 " / 1626 mm
Travels: Y axis
32 " / 813 mm
Travels: Z axis
30 " / 762 mm
Spindle Nose to Table
max 35 " / 889 mm min 5 " / 127 mm
Table length x width
64 " x 28 " / 1626 mm x 711 mm
Feedrates: rapids on X, Y, Z
600 in/min / 15.2 m/min
Feedrates: max cutting
500 in/min / 12.7 m/min

Product overview: VF-6/50

Vertical Machining Center; 64" x 32" x 30" (1626 x 813 x 762 mm), 50-taper geared-head, 30-hp (22.4 kW), 7500 rpm, 30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

Read more on the website of our partner

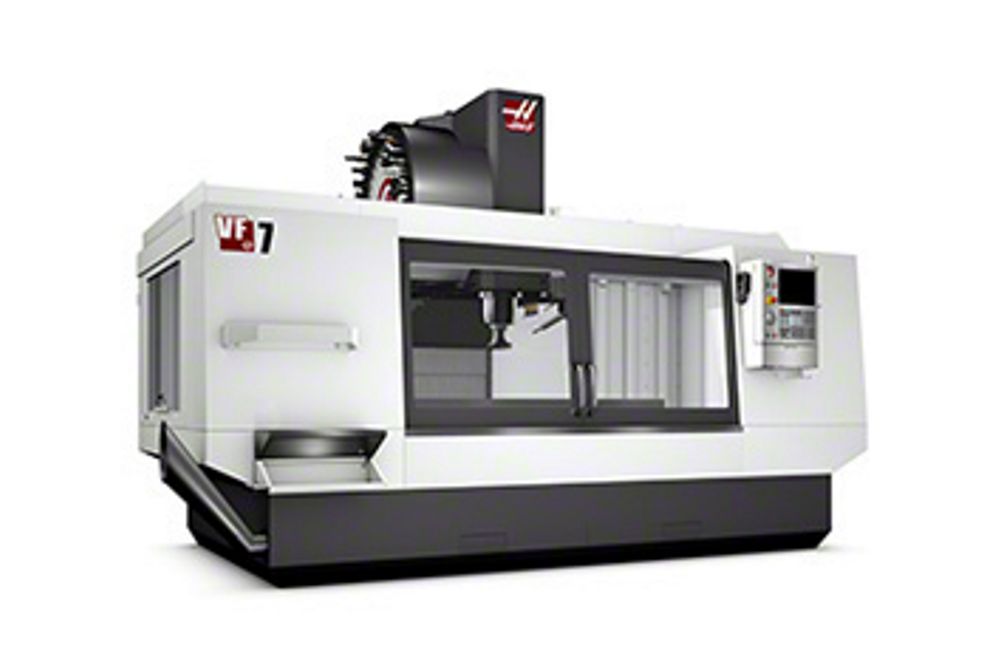

DKSH-Haas-VF7-50-JPEG
Technical Specifications
VF-7/50
Travels: X axis
84 " / 2134 mm
Travels: Y axis
32 " / 813 mm
Travels: Z axis
30 " / 762 mm
Spindle Nose to Table
max 35 " / 889 mm min 5 " / 127 mm
Table length x width
84 " x 28 " / 2134 mm x 711 mm
Feedrates: rapids on X, Y, Z
600 in/min / 15.2 m/min
Feedrates: max cutting
500 in/min / 12.7 m/min

Product overview: VF-7/50

Vertical Machining Center; 84" x 32" x 30" (2134 x 813 x 762 mm), 50-taper geared-head, 30-hp (22.4 kW) vector drive, 7500 rpm,30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger system, programmable coolant nozzle, color remote jog handle, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

Read more on the website of our partner

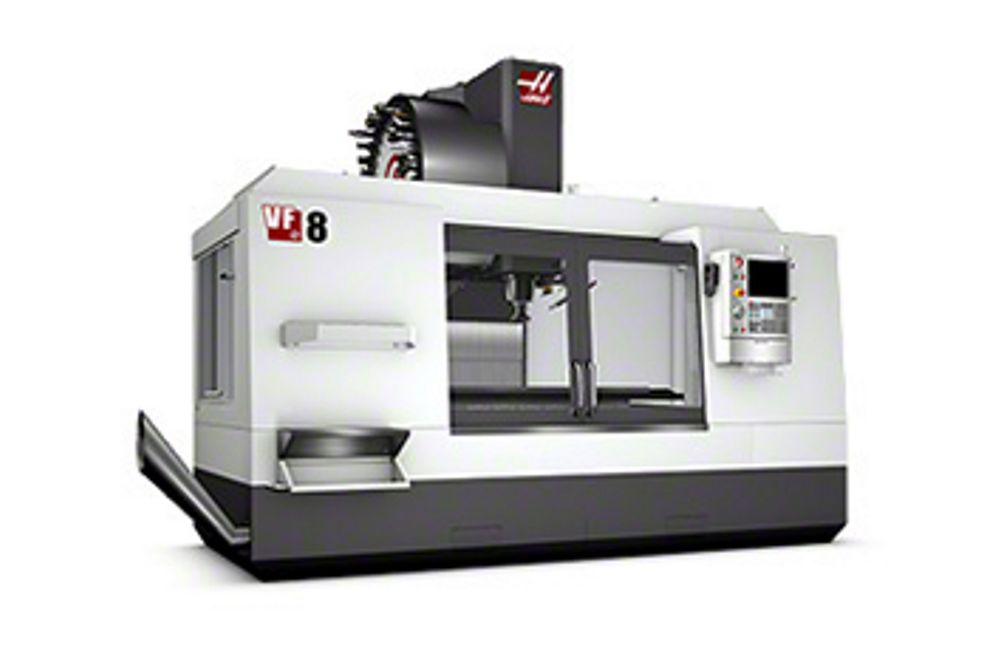

DKSH-Haas-VF8-50-JPEG
Technical Specifications
VF-8/50
Travels: X axis
64 " / 1626 mm
Travels: Y axis
40 " / 1016 mm
Travels: Z axis
30 " / 762 mm
Spindle Nose to Table
max 35 " / 889 mm min 5 " / 127 mm
Table length x width
64 " x 36 " / 1626 mm x 914 mm
Feedrates: rapids on X, Y, Z
600 in/min / 15.2 m/min
Feedrates: max cutting
500 in/min / 12.7 m/min

Product overview: VF-8/50

Vertical Machining Center; 64" x 40" x 30" (1626 x 1016 x 762 mm), 50-taper geared-head, 30-hp (22.4 kW), 7500 rpm, 30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

Read more on the website of our partner

DKSH-Haas-VF9-50-JPEG
Technical Specifications
VF-9/50
Travels: X axis
84 " / 2134 mm
Travels: Y axis
40 " / 1016 mm
Travels: Z axis
30 " / 762 mm
Spindle Nose to Table
max 35 " / 889 mm min 5 " / 127 mm
Table length x width
84 " x 36 " / 2134 mm x 914 mm
Feedrates: rapids on X, Y, Z
600 in/min / 15.2 m/min
Feedrates: max cutting
500 in/min / 12.7 m/min

Product overview: VF-9/50

Vertical Machining Center; 84" x 40" x 30" (2134 x 1016 x 762 mm), 50-taper geared-head, 30-hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger system, programmable coolant nozzle, color remote jog handle, power-failure detection module, 1 GB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.

Read more on the website of our partner

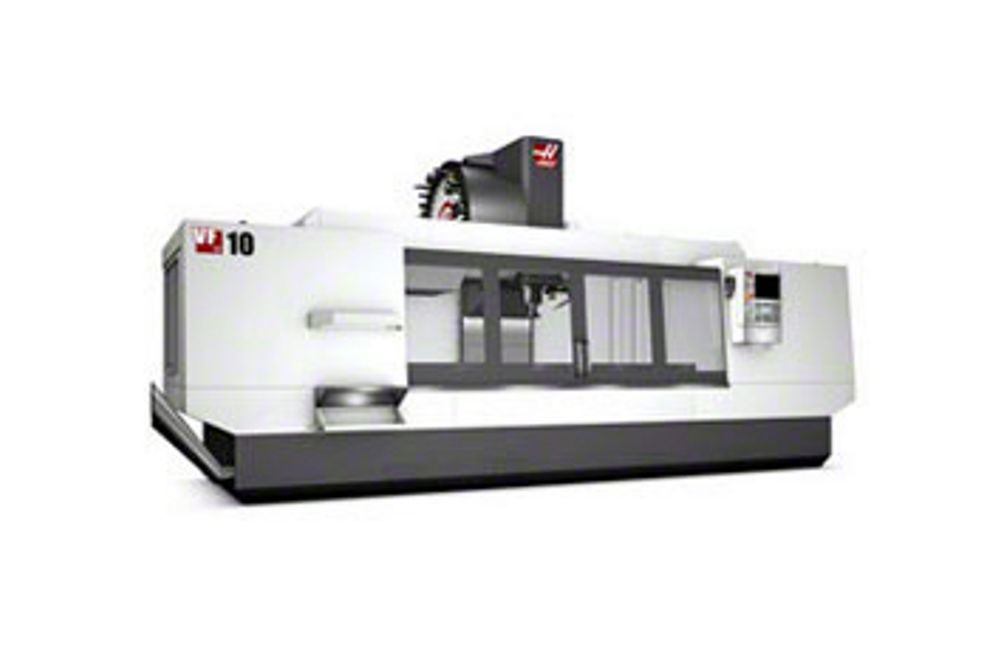

DKSH-Haas-VF1050-JPEG
Technical Specifications
VF-10/50
Travels: X axis
120 " / 3048 mm
Travels: Y axis
32 " / 813 mm
Travels: Z axis
30 " / 762 mm
Spindle Nose to Table
max 35 " / 889 mm min 5 " / 127 mm
Table length x width
120 " x 28 " / 3048 mm x 711 mm
Feedrates: rapids on X
360 in/min / 9.1 m/min
Feedrates: rapids on Y, Z
600 in/min / 15.2 m/min
Feedrates: max cutting
360 in/min / 9.1 m/min

Product overview: VF-10/50

Vertical Machining Center; 120" x 32" x 30" (3048 x 813 x 762 mm), 50- taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 360 ipm (9.1 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, 15" color LCD monitor, USB port, memory lock keyswitch, power-failure detection module, 1 GB program memory, rigid tapping and 95-gallon (360 liter) flood coolant system. Outriggers standard. Anchor kit highly recommended for installation.

Read more on the website of our partner

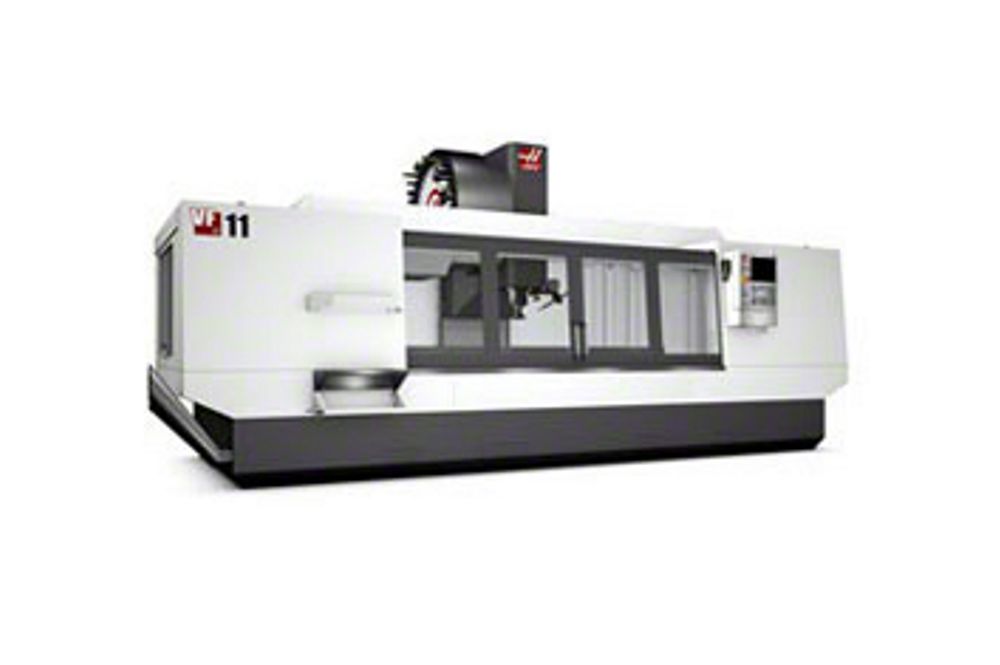

DKSH-Haas-VF11-50-JPEG
Technical Specifications
VF-11/50
Travels: X axis
120 " / 3048 mm
Travels: Y axis
40 " / 1016 mm
Travels: Z axis
30 " / 762 mm
Spindle Nose to Table
max 35 " / 889 mm min 5 " / 127 mm
Table length x width
120 " x 28 " / 3048 mm x 711 mm
Feedrates: rapids on X
360 in/min / 9.1 m/min
Feedrates: rapids on Y, Z
600 in/min / 15.2 m/min
Feedrates: max cutting
360 in/min / 9.1 m/min

Product overview: VF-11/50

Vertical Machining Center; 120" x 40" x 30" (3048 x 1016 x 762 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 360 ipm (9.1 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, 15" color LCD monitor, USB port, memory lock keyswitch, power-failure detection module, 1 GB program memory, rigid tapping and 95-gallon (360 liter) flood coolant system. Outriggers standard. Anchor kit highly recommended for installation.

Read more on the website of our partner

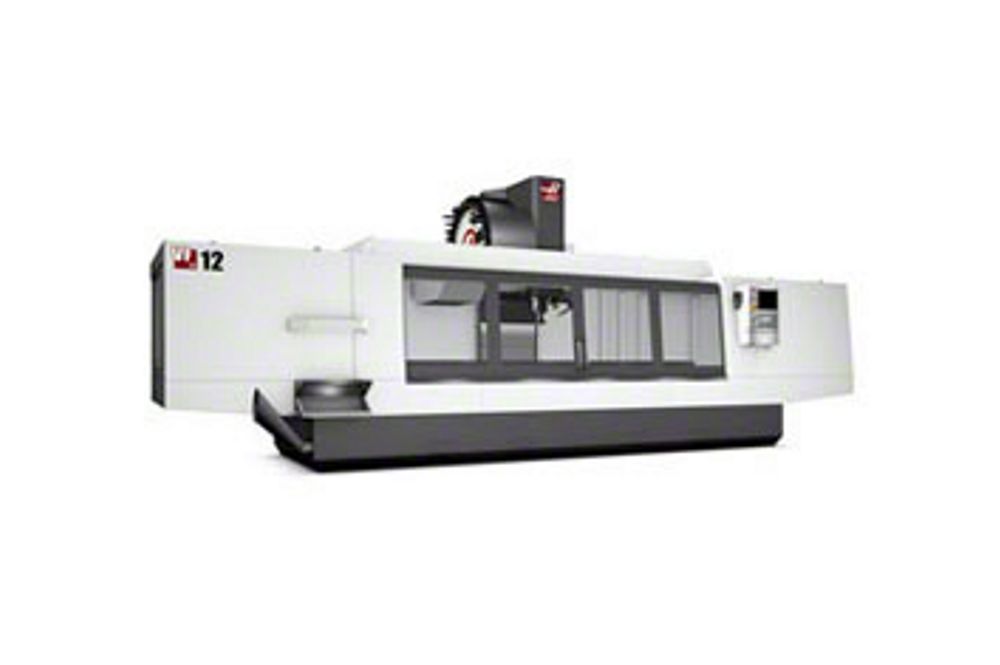

DKSH-Haas-VF12-50-JPEG
Technical Specifications
VF-12/50
Travels: X axis
150 " / 3810 mm
Travels: Y axis
32 " / 813 mm
Travels: Z axis
30 " / 762 mm
Spindle Nose to Table
max 35 " / 889 mm min 5 " / 127 mm
Table length x width
150 " x 28 " / 3810 mm x 711 mm
Feedrates: rapids on X
360 in/min / 9.1 m/min
Feedrates: rapids on Y, Z
600 in/min / 15.2 m/min
Feedrates: max cutting
360 in/min / 9.1 m/min

Product overview: VF-12/50

Vertical Machining Center; 150" x 32" x 30" (3810 x 813 x 762 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 360 ipm (9.1 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, 15" color LCD monitor, USB port, memory lock keyswitch, power-failure detection module, 1 GB program memory, rigid tapping and 95-gallon (360 liter) flood coolant system. Outriggers standard. Anchor kit highly recommended for installation.

Read more on the website of our partner

  • Aerospace
  • Automotive
  • Defense
  • Die & Mould
  • Education & Academics
  • Electronics
  • Machinery & Manufacturing
  • Medical
  • Mining & Minerals
  • Oil & Gas
  • Semiconductor, Solar & Electronics
  • Shipbuilding
Haas AutomationHaas Automation is the largest machine tool builder in the western world, manufacturing a complete line of CNC vertical machining centers, horizontal machining centers, CNC lathes, and rotary products. High-quality Haas machines are engineered for simple maintenance, easy setup, and low-cost operation.
