The key factor in achieving high-quality printing in accordance with the market demand is that the ink transfer is conducted in a consistent and homogeneous manner, and the proper cleaning of the rolls and sleeves is critical.
In addition, working with high-line screens rolls, through which much higher accuracy and detail in the printing is achieved, however makes the cleaning on the micro-alveoli on the surface of the anilox more difficult to achieve.
Key Features
Innovation and control
The new cleaning programs are based on correctly managing the variables that affect the result of the cleaning. Understanding and correctly managing these factors has headed us to a new, control-based approach.
More technology, more connectivity
The Internet connection also allows our technical team to perform after-sales service quickly and remotely. The optimisation of processes by sharing machine-person information through M2P technology.
Plus in terms of range
Each model comes in three versions, depending on the cleaning speed it provides allows us to offer each customer the product they really need.
All models and versions offer the same safety and performance guarantees.

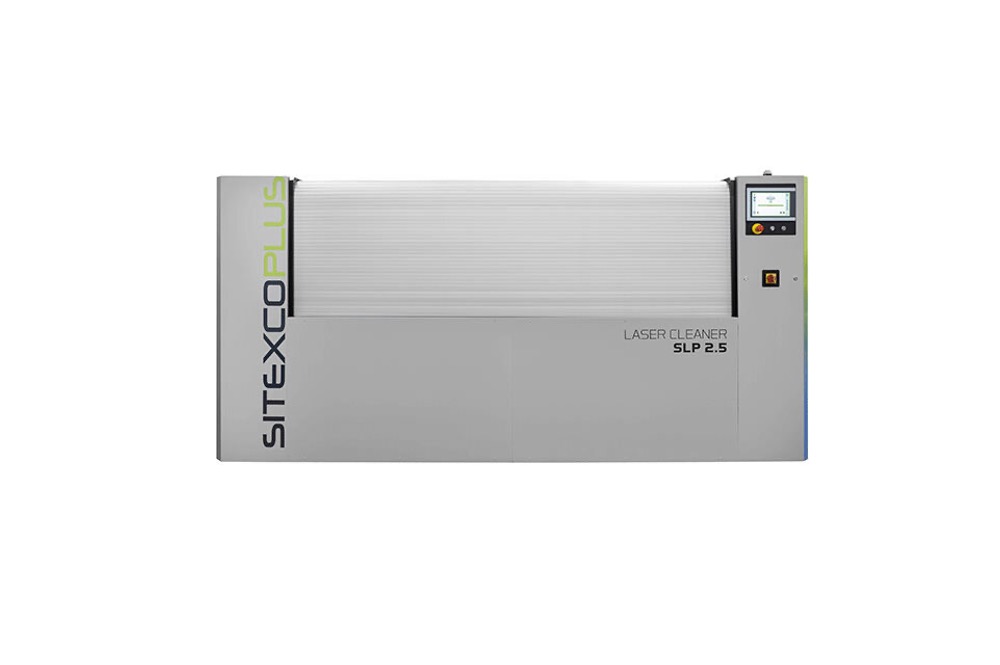

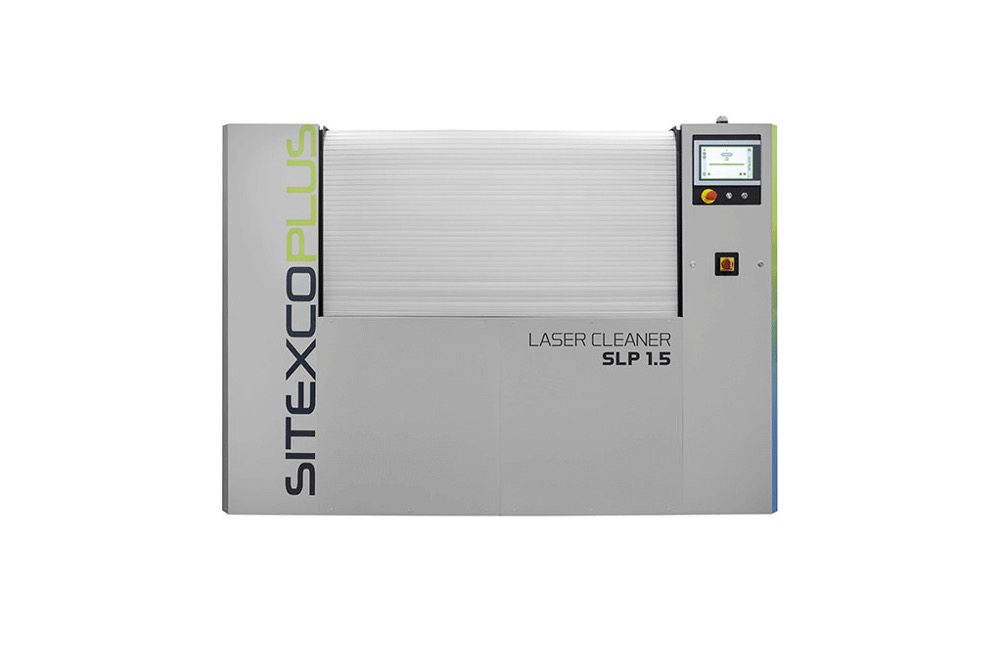

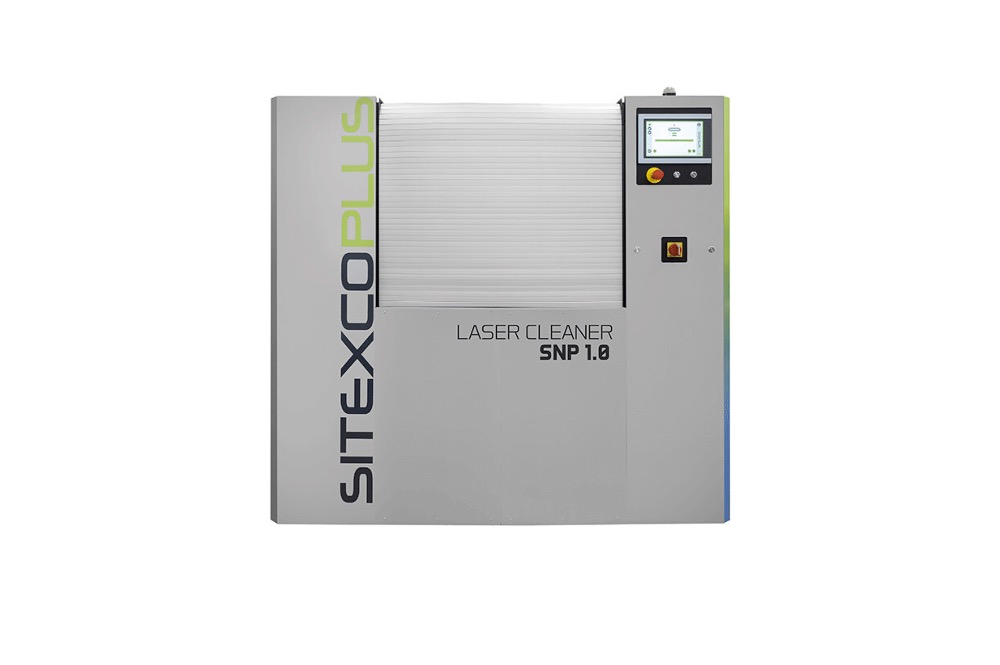

Model | SNP 1.0 | SLP 1.5 | SLP 2.5 | SLP3.2 |
---|---|---|---|---|
Machine Length | 1600m / 63” | 2450mm / 96.5” | 3450mm / 135,85” | 4150mm / 163.38” |
Machine Height | 1600mm / 63” | 1750mm / 68.9” | 1750mm / 68.9” | 1750mm / 68.9” |
Machine Width | 670mm / 26.5” | 835mm / 33” | 835mm / 33” | 835mm / 33” |
Maximum cleaning length | 850mm / 33,46” | 1500mm / 59” | 2500mm / 98.5” | 3250mm / 128” |
Maximum roll diameter | 135mm / 5,31” | 300mm / 11,81” | 300mm / 12,4” | 300mm / 11,81” |
Minimum roll diameter | 45mm / 1.77” | 80mm / 3,15” | 80mm / 3,15” | 80mm / 3,15” |
Total roll weight | 80Kg / 176.5lb | 200Kg / 441lb | 250Kg / 551lb | 300Kg / 661lb |
Electrical power | 1.5 KW | 1.9 KW | 1.9 KW | 1.9 KW |
Electrical supply | 208-550 Vac (single or dual phase) |
208-550 Vac (single or dual phase) |
208-550 Vac (single or dual phase) |
208-550 Vac (single or dual phase) |
Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Air supply | NO | NO | NO | NO |
TEG Technologies is a company that has been involved in the field of industrial automation since 1992. With a workforce of over 180 professionals, it enjoys the recognition and trust of a large number of companies in different sectors.
TEG has an engineering department and a production workshop, with its own assembling line, to make products capable of meeting the market’s technological needs in accordance with the principles of facilitating work and providing value.
