Scan 500 is an inhibition zone reader. It has been designed for the pharmaceutical industries, medical research and animal health. Scan 1200 is an inhibition zone reader. It has been designed for the pharmaceutical industry, medical research and animal health. Scan 1200 is an inhibition zone reader. It has been designed for the pharmaceutical industry, medical research and animal health.

Accuracy and traceability of results

Inhibition zone measurement is time-consuming. The inhibition zone readers enable quicker and more accurate measurements.

They also guarantee the traceability of results.

Available models

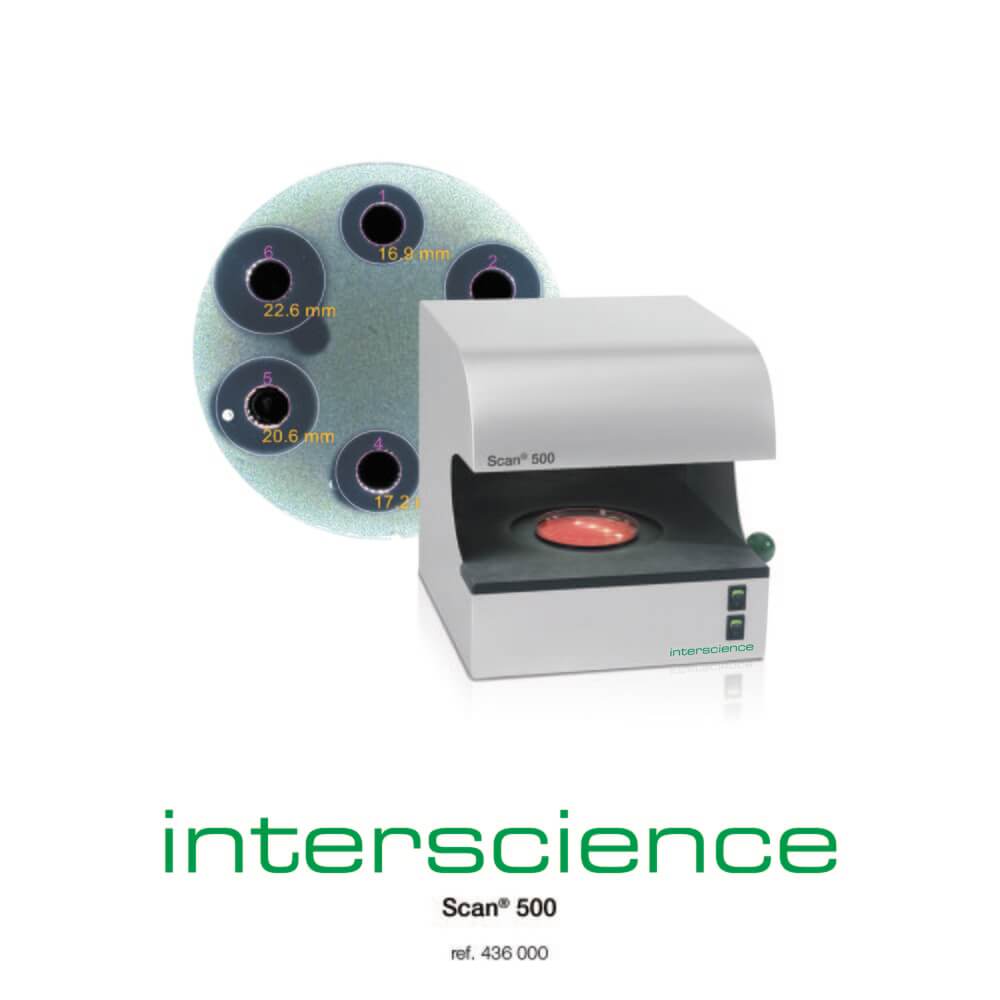

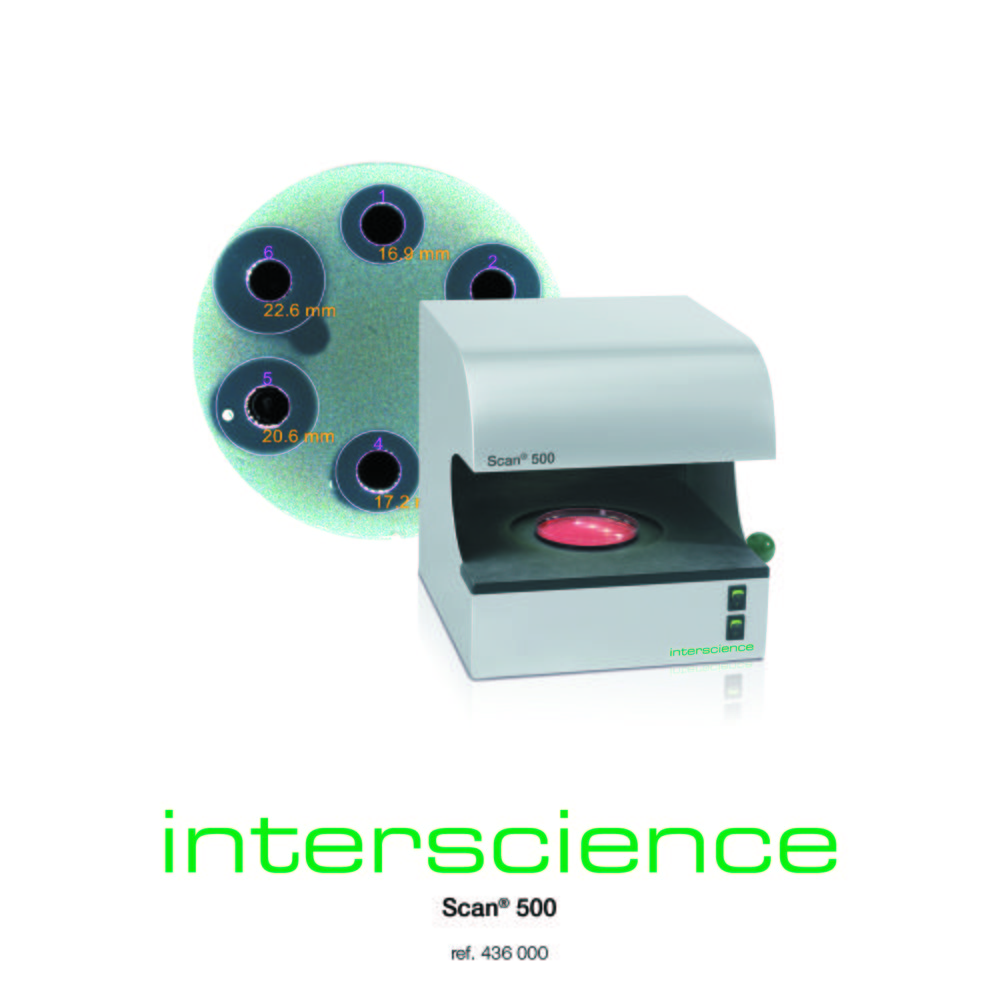

Scan 500 is an inhibition zone reader. It has been designed for the pharmaceutical industries, medical research and animal health.

Inhibition zone reader

Essential features

Scan 500 is an inhibition zone reader. It has been designed for the pharmaceutical industries, medical research and animal health.

  • Inhibition zone measurement accuracy: ± 0,3 mm
  • Fast: up to 7 inhibition zones in 1 click
  • Protocols: wells, peni-cylinders, paper disks
  • Interpretation systems: EUCAST, CA-SFM, CLSI and customizable
  • Traceability: data import and export

Applications

Scan makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.

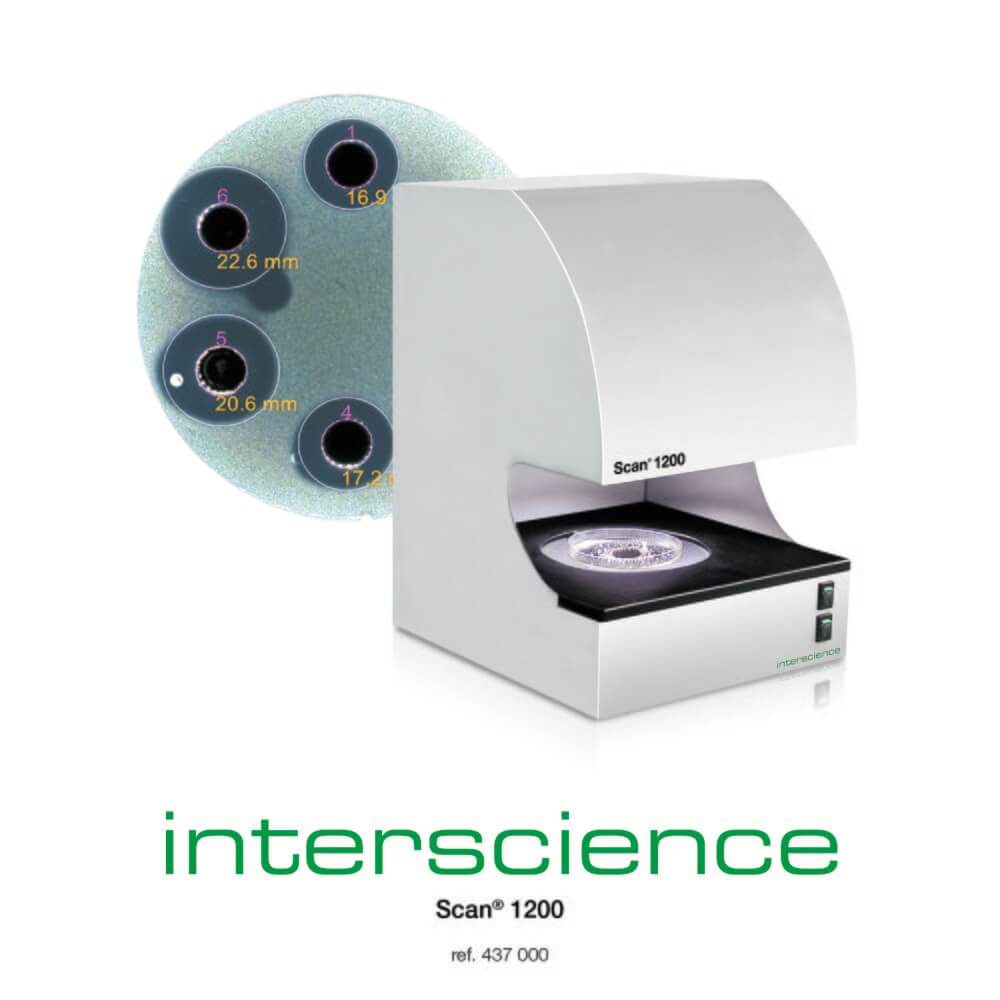

Scan 1200 is an inhibition zone reader. It has been designed for the pharmaceutical industry, medical research and animal health.

HD inhibition zone reader

High-performance

Scan 1200 is an inhibition zone reader. It has been designed for the pharmaceutical industry, medical research and animal health.

  • Inhibition zone measurement accuracy: ± 0.3 mm
  • Quick: up to 7 inhibition zones in 1 click
  • Protocols: wells, peni-cylinders, paper disks
  • Interpretation systems: EUCAST, CA-SFM, CLSI and customizable
  • Traceability: data import and export

Applications

Scan makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.

Ultra HD inhibition zone reader

State-of-the-art technology

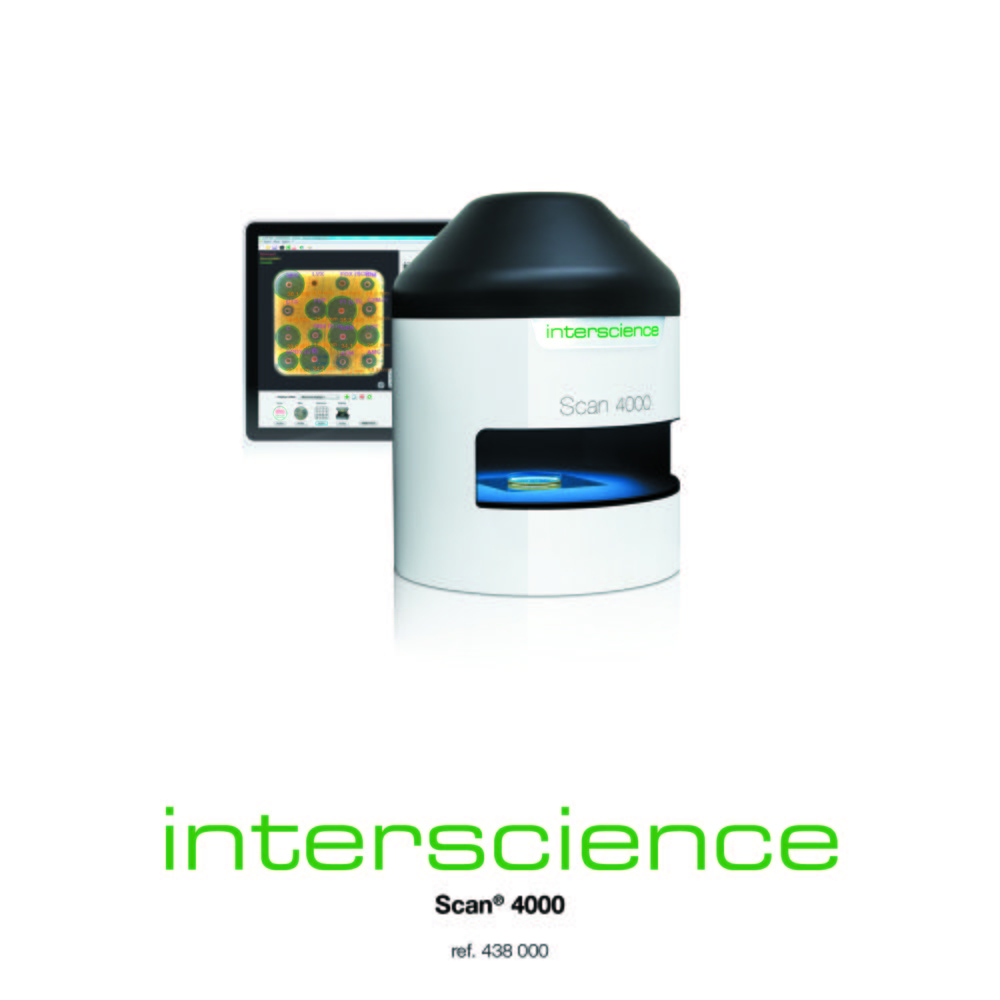

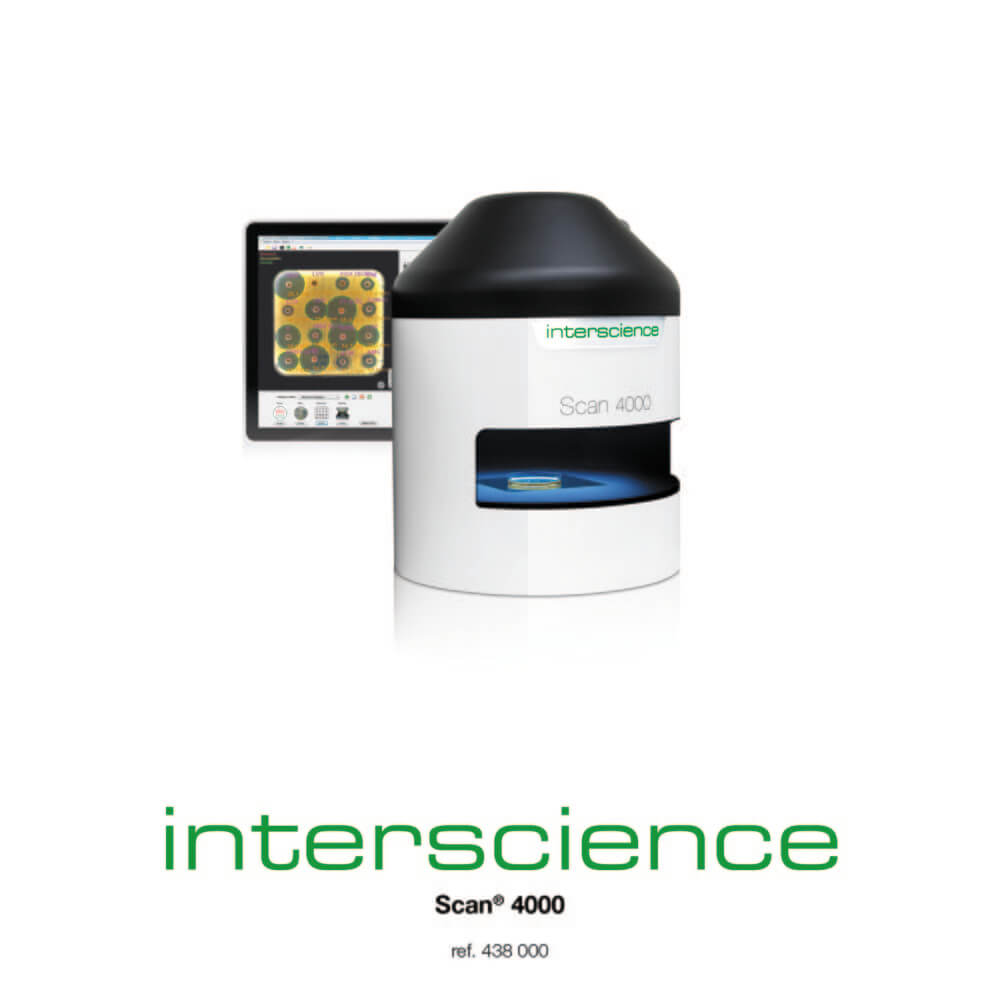

Scan 4000 is an ultra HD inhibition zone reader. It has been designed for the pharmaceutical industries, medical research and animal health. Scan 4000 reads square Petri dishes of 120 mm and round Petri dishes up to 150 mm.

  • Inhibition zone measurement accuracy: ± 0.1 mm
  • Fast: up to 16 inhibition zones in 2 to 4 seconds
  • Protocols: wells, peni-cylinders, paper disks
  • Interpretation systems: EUCAST, CA-SFM, CLSI and customizable
  • Traceability: data import and export

Applications

Scan makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.

Key features

  • Quick results
  • The result is categorized SIR (Green: susceptible, Yellow: intermediate, Red: resistant)
  • Detection on all petri-dishes
  • 21 CFR Part 11 compliance
  • Connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink traceability system.
  • Multiple export possibilities to save manual input time
  • All data are archived
  • Integrated databases that can be modified by user

Technical specifications

Scan 500
Reference 436 000
Camera CMOS color camera
Lens M12 lens
Zoom x 28
Resolution 1 megapixel
Counting time Up to 1000 colonies per second
Minimal size of a colony 0.1 mm
Lighting technology Long-life White LEDs / Dark Field
Lighting system Automatic with 6 combinations, top and/or bottom light, white or black background
Counting Automatic with manual control
Dimensions (w x d x h) 28.5 x 26.5 x 29 cm
Weight 8.4 kg
Box (w x d x h) 50 x 40 x 40 cm
Gross weight 11 kg
Voltage - Frequencies 100-240 V~ 50-60 Hz
Power 20 W

Scan 4000
Reference 438 000
Camera HD CCD color camera
Lens HD Japanese lens
Zoom x 69
Resolution 5 megapixels
Counting time Up to 1000 colonies per second
Minimal size of a colony ± 0.1 mm
Lighting technology White Dome LED
Lighting system Automatic with 7 combinations, top and/or bottom light, white or black background
Counting Automatic with manual control
Dimensions (w x d x h) 47 x 47 x 64 cm
Weight 25 kg
Box (w x d x h) 60 x 63 x 80 cm
Gross weight 32 kg
Voltage - Frequencies 100-240 V~ 50-60 Hz
Power 140 W

Scan 1200
Reference 437 000
Camera HD CCD color camera
Lens HD Japanese lens
Zoom x 28
Resolution 1.2 megapixels
Counting time Up to 1000 colonies per second
Minimal size of a colony ± 0.3 mm
Lighting technology Long-life White LEDs / Dark Field
Lighting system Automatic with 6 combinations, top and/or bottom light, white or black background
Counting Automatic with manual control
Dimensions (w x d x h) 28.5 x 26.5 x 37.5 cm
Weight 9.4 kg
Box (w x d x h) 57 x 42 x 42 cm
Gross weight 12.4 kg
Voltage - Frequencies 100-240 V~ 50-60 Hz
Power 20 W

Video

Scan 500 and 1200 overview

Unboxing - Automatic Scans model

Unboxing - Scan 4000

  • Cosmetics & Personal Care
  • Environmental
  • Food & Beverage
  • Pharmaceutical
InterscienceINTERSCIENCE is a French leading manufacturer for microbiology. Our products are used daily in laboratories in more than 120 countries to ensure safe food and products, safe medical resources and innovative research. Our products are ISO 9001 and CE certified, we also follow European directives 2006/42 / EC, 2014/30 / EU and 2014/35 / EU.
