Thermal profiling is the recording of time and temperature throughout a thermal process – most often to measure exposure within an oven. Used in many industries, thermal profiling collects data on a product’s thermal transformation experience, which is then analyzed to optimize complex process settings and conditions to ensure quality results.

A pioneer in the design of the traveling thermal profiler, ECD has developed a suite of thermal data logging products that serve the electronics, baking, industrial and solar industries, among others.

Contact us

Technical Specification M.O.L.E.™ EV6 Series

M.O.L.E.™ EV6 M.O.L.E.™ EV6 Baking
Dimensions (L x W x H) • Profiler: 152.4mm (6”) x 89mm (3.5”) x 9.41mm (0.37”)
• Barrier: 269.7mm (10.62”) x 104mm (4.1”) x 26.9mm (1.06”)
• Yellow Jacket: 286.5mm (11.28”) x 115mm (4.53”) x 32.5 (1.28”)		 • Profiler: 152.4mm [6”] x 89mm [3.5”] x 9.41mm [0.37”]
• BB-45: 241mm [9.5“] x 122mm [4.80“] x 46mm [1.82“]
• BB-50: 238mm [9.37“] x 122mm [4.80“] x 49mm [1.93“]
• BB-80: 236mm [9.3”] x 123mm [4.7”] x 80mm [3.15"]
Weight • Profiler: 0.204 kg (7.2 oz)
• Barrier: 0.861 kg (30.4 oz)
• Yellow Jacket: 0.07 kg (2.4 oz)		 • Profiler: 0.204 kg [7.2 oz]
• BB-45: 1.47kg [51.85 oz]
• BB-50: 2.38kg [83.95 oz]
• BB-80: 4.1kg [144.60 oz]
Operational range (profiler) -40°C to +85°C (-40°F to 185°F) -40°C to +85°C (-40°F to 185°F)
Sampling interval 100 samples/second to 10 minutes/sample 100 samples/second to 10 minutes/sample
Data points 16 million (2.6 million at 6 channels) or 200 data
runs (whichever comes first)		 16 million (2.6 million at 6 channels) or 200 data
runs (whichever comes first)
Accuracy +/- 1°C (1.8°F) +/- 1°C (1.8°F)

For further details, please refer to enclosed datasheet.

Technical Specification SuperM.O.L.E.™ Gold 2 Series

SuperM.O.L.E.™ Gold 2 SuperM.O.L.E.™ Gold 2 Baking
Dimensions (L x W x H) • Profiler: 152.4mm (6”) x 89mm (3.5”) x 9.41mm (0.37”)
• Barrier: 269.7mm (10.62”) x 104mm (4.1”) x 26.9mm (1.06”)
• Yellow Jacket: 286.5mm (11.28”) x 115mm (4.53”) x 32.5 (1.28”)		 • Profiler: 152.4mm (6”) x 89mm (3.5”) x 9.41mm (0.37”)
• Barrier BB-45: 251.5mm (9.9”) x 116.8mm (4.6”) x 44.5mm (1.75”)
• Barrier BB-50: 238mm [9.37“] x 122mm [4.80“] x 49mm [1.93“]
• Barrier BB-80: 236mm (9.3”) x 123mm (4.7”) x 80mm (3.14”)
Weight • Profiler: 0.204 kg (7.2 oz)
• Barrier: 0.861 kg (30.4 oz)
• Yellow Jacket: 0.07 kg (2.4 oz)		 • Profiler: 0.204 kg [7.2 oz]
• BB-45: 1.47kg [51.85 oz]
• BB-50: 2.38kg [83.95 oz]
• BB-80: 4.1kg [144.60 oz]
Operational range (profiler) -40°C to +85°C (-40°F to 185°F) -40°C to +85°C (-40°F to 185°F)
Sampling interval 0.1 seconds to 24 hours 0.1 seconds to 24 hours
Data points 250,000 for all 6 channels 250,000 for all 6 channels
Accuracy +/- 1°C (1.8°F) +/- 0.5°C (0.9°F)

For further details, please refer to enclosed datasheet.

Technical Specification V-M.O.L.E.™ Series

V-M.O.L.E.™ V-M.O.L.E.™ Baking V-M.O.L.E.® Solar
Dimensions (L x W x H) • Profiler: 145mm (5.7”) x 64mm (2.5”) x 7.62mm (0.3”)
• Barrier: 230.4mm (9.1”) x 80.5mm (3.2”) x 26.9mm (1.06”)
• Yellow Jacket: 257mm (10.2”) x 97mm (3.8”) x 31mm (1.2”)		 • Profiler: 145mm (5.7”) x 64mm (2.5”) x 7.62mm (.3”)
• Barrier: BB-50: 49mm (1.93”) x 122mm (4.80”) x 49mm (1.93”)		 145mm (5.7”) x 64mm (2.5”) x 7.62mm (0.3”)
Weight • Profiler: 0.068 kg (2.4 oz)
• Barrier: 0.595 kg (21 oz)
• Yellow Jacket: 0.045 kg (1.6 oz)		 • Profiler: 0.068 kg (2.4 oz)
• Barrier: BB-50: 2.38kg (5.25lbs)		 0.068 kg (2.4 oz)
Operational range (profiler) -40°C to +85°C (-40°F to 185°F) -40°C to +85°C (-40°F to 185°F) -40°C to +85°C (-40°F to 185°F)
Sampling interval 0.1 seconds to 24 hours 0.1 seconds to 24 hours 0.1 seconds to 24 hours
Data points 500,000 total for 3 channels 500,000 total for 3 channels 500,000 total for 3 channels
Accuracy +/- 1°C (1.8°F) +/- 0.5°C (0.9°F) +/- 0.5°C (0.9°F)

For further details, please refer to enclosed datasheet.

Technical Specification MEGAM.O.L.E.™ 20

Dimensions (L x W x H) • Profiler: 179mm (7”) x 64mm (2.5”) x 7.12mm(.28”)
• Barrier: 230.4mm (9.1”) x 80.5mm (3.2”) x 26.9mm (1.06”)
• Yellow Jacket: 257.8mm (10.2”) x 97mm (3.8”) x 31mm (1.2”)
Weight • Profiler: 0.204 kg (7.2 oz)
• Barrier: 0.595 kg (21 oz)
• Yellow Jacket: 0.045 kg (1.6 oz)
Operational range (profiler) -40°C to +85°C (-40°F to 185°F)
Sampling interval 0.1 seconds to 24 hours
Data points 75,000 for all 20 channels
Accuracy +/- 1°C (1.8°F)

For further details, please refer to enclosed datasheet.

Product Gallery

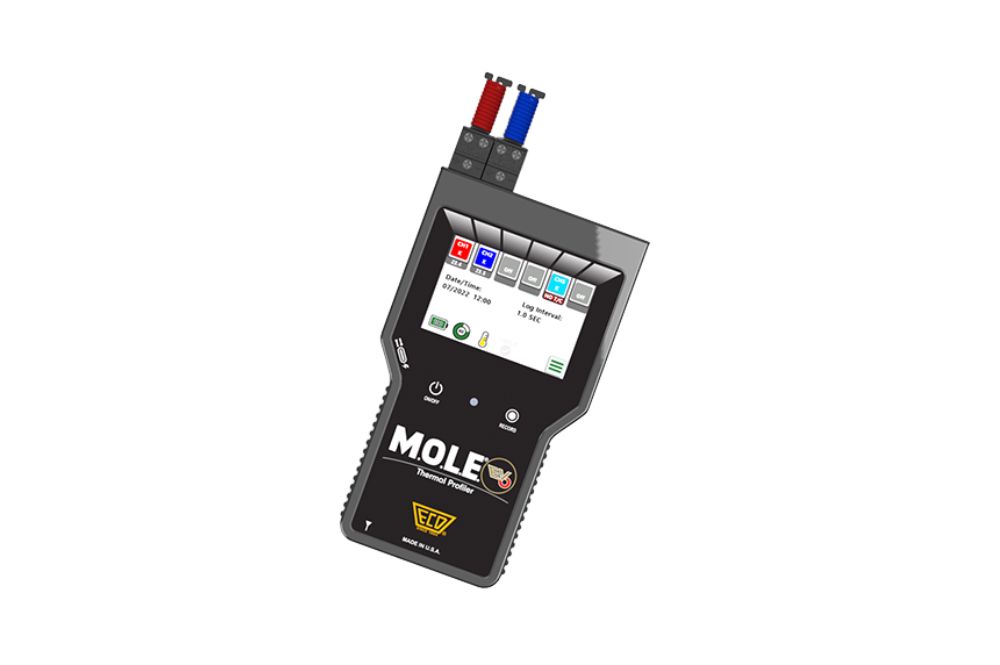

  • M.O.L.E.™ EV6 / M.O.L.E.™ EV6 Baking

    M.O.L.E.™ EV6 / M.O.L.E.™ EV6 Baking

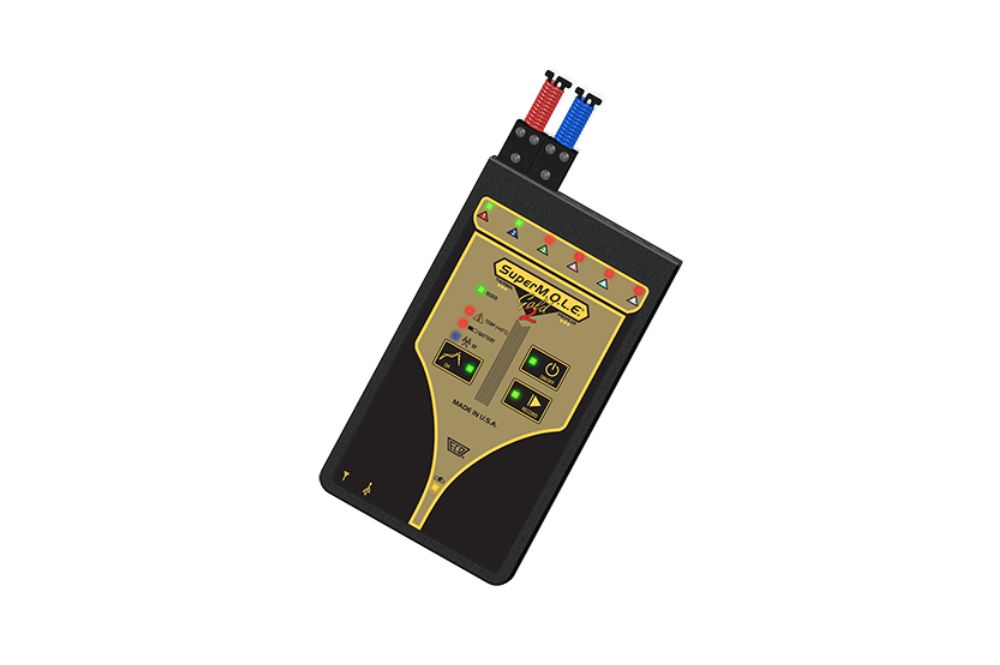

  • SuperM.O.L.E.™ Gold 2 / SuperM.O.L.E.™ Gold 2 Baking

    SuperM.O.L.E.™ Gold 2 / SuperM.O.L.E.™ Gold 2 Baking

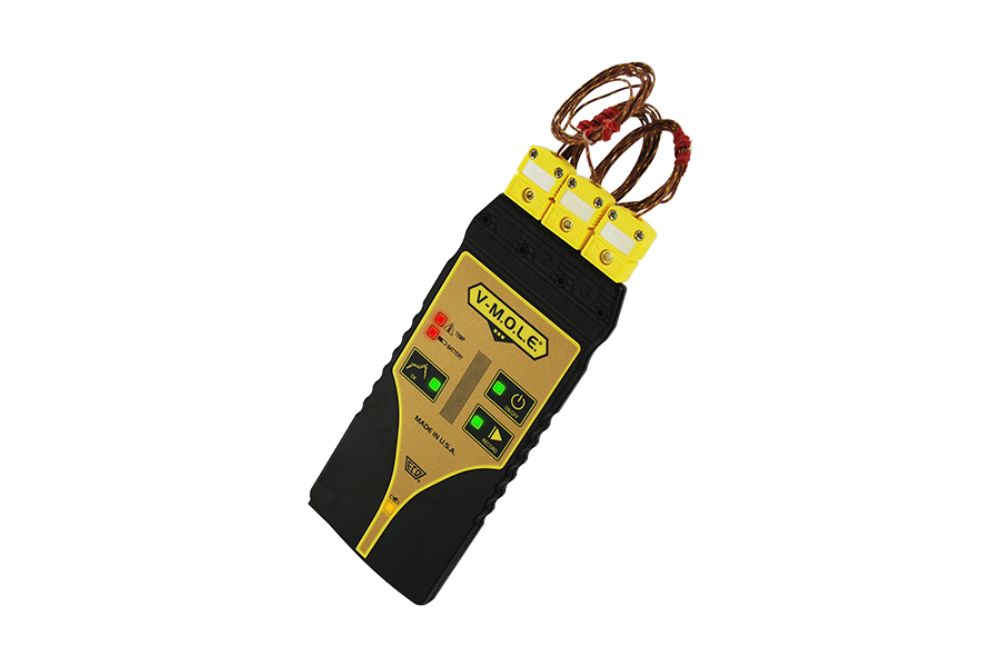

  • V-M.O.L.E.™ / V-M.O.L.E.™ Baking
