Machine Quality Management (MQM) tools ensure soldering equipment – whether reflow, wave, or selective – is performing to specifications. Keeping a machine operating within its set tolerances sets a good foundation for product quality and high-yield operations. ECD MQM pallets use the M.O.L.E. thermal profiler as the data collection device, enabling the use of one data acquisition system that can be used across soldering equipment platforms.

Contact us

Technical Specification Machine Quality Management Series

OvenRIDER NL 2+

SelectiveRIDER

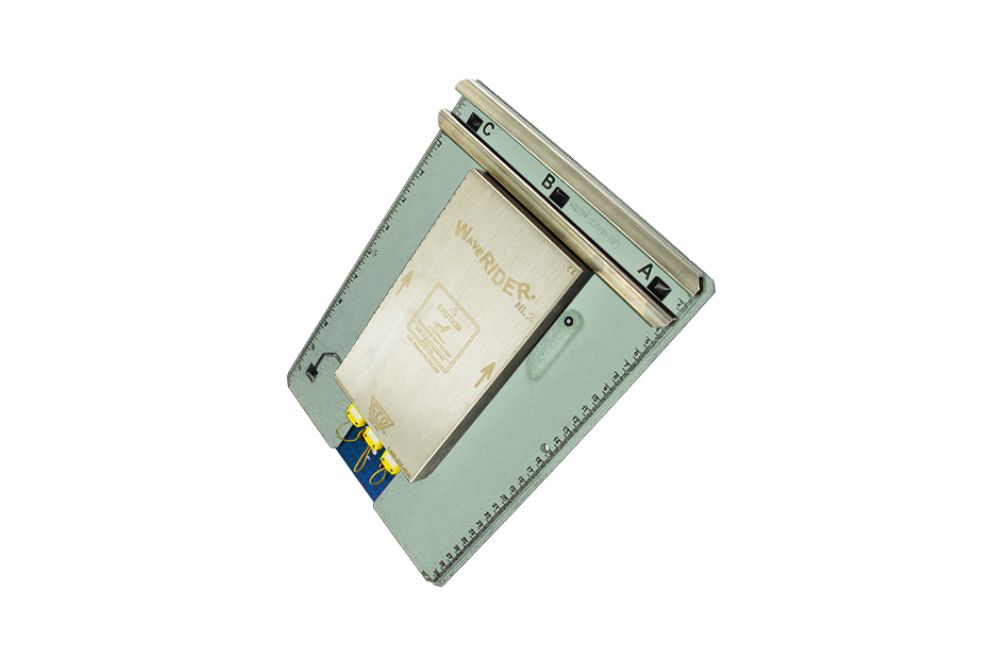

WaveRIDER NL 2

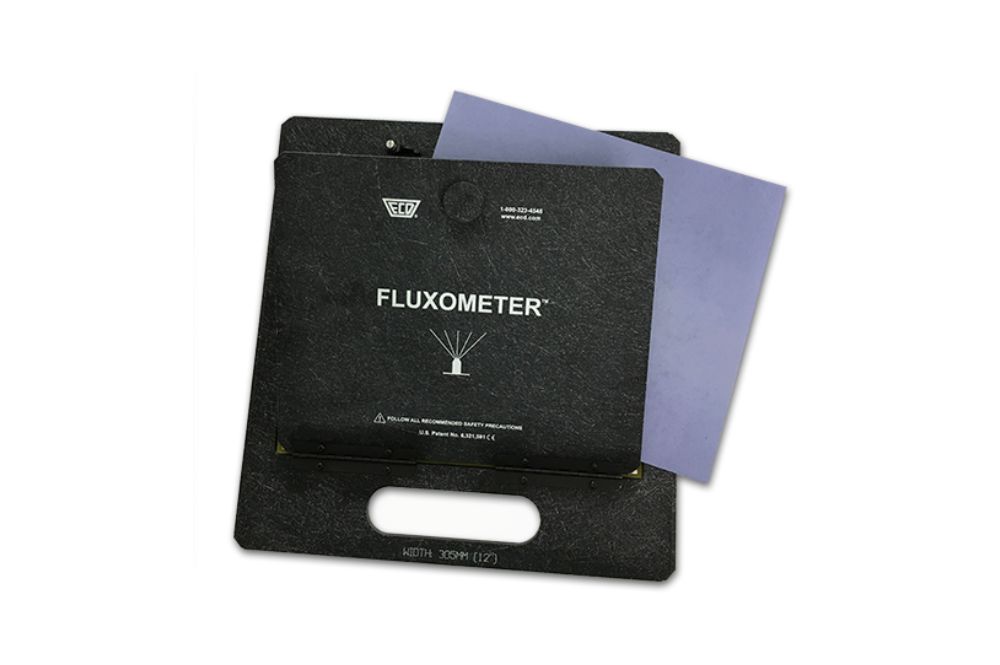

Fluxometer

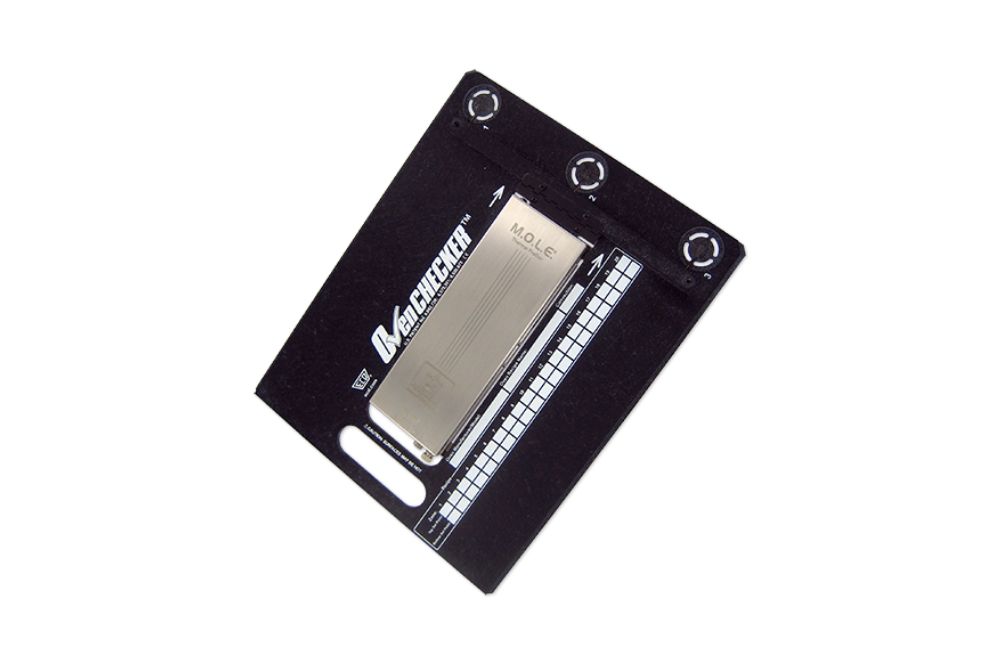

OvenCHECKER

Reflow Validator

Length 266.7mm (10.5”) x 241.3mm (9.5”) x 47.6mm (1.88”) 300 mm [11.8 in.] 305 mm [12in.] 313 mm [12.32 in.] 313 mm [12.32 in.] 150 mm [5.9 in.]
Height 31.75 mm [1.25 in]
20.55 mm [0.81in] above conveyor chain
35.4 mm [1.39 in.] 33 mm [1.3in.] 28 mm [1.08 in.] 2.54cm (1.0in.)
17.8mm (0.7”) above conveyor chain
7.6mm (0.3”) below conveyor chain
8 mm (0.314 in.)
Width Standard: 167 mm [6.6 in], 305 mm [12 in], 458 mm [18in]
Custom: >167 mm [6.6 in]
200 mm [7.87 in.] Standard: 229mm [9”], 305 mm [12”], 381mm [15’], 458 mm [18”]
Custom: >145mm [5.7”]
Standard: 229 mm [9”], 305 mm [12”], 381 [15”], 458 mm [18”]
Custom: Contact ECD
30.5cm (12in.) 250 mm (9.8 in.)
Weight 6.6”: 1.74 kg [3.84 lb], 12”: 2.81 kg [6.19 lb], 18”: 3.54 kg [7.8 lb] 1.72 kg [3.78 lbs] 9”: 1.36 kg [3.0 lbs]
12”: 1.72 kg [3.8 lbs]
15”: 1.86 kg [4.1 lbs]
18”: 2.61 kg [5.75 lbs]
- 1656 grams (3.65 lbs.) 200 grams (0.44 Ibs.)
Max. Operational Temperature 300°C [572°F] 300°C [572°F] 300°C [572°F] - 300°C [572°F] 300°C [572°F]

For further details, please refer to enclosed datasheet.
